High Quality Stainless Steel Single Stage Multistage Centrifugal Pump Water Pump Self-Priming Pump
| US$450.00-3,450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KLX
Max.Head
50-80m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Since Irrigation Centrifugal Pumps
Impeller
Open
Usage
Pump, Pumps
Flow Rate
1t/H - 140t/H
Pump Type
Centrifugal Type
Operation
by Open Impeller
Media
Similar to Water
Viscosity
Less Than 500cps
Transport Package
Plywood Case
Specification
1.5t~100t Lift: 14m~70m
Trademark
Donjoy-(OEM will be also welcome)
Origin
Wenzhou, Zhejiang, China
HS Code
8413709990
Production Capacity
100PCS/Month
Product Description

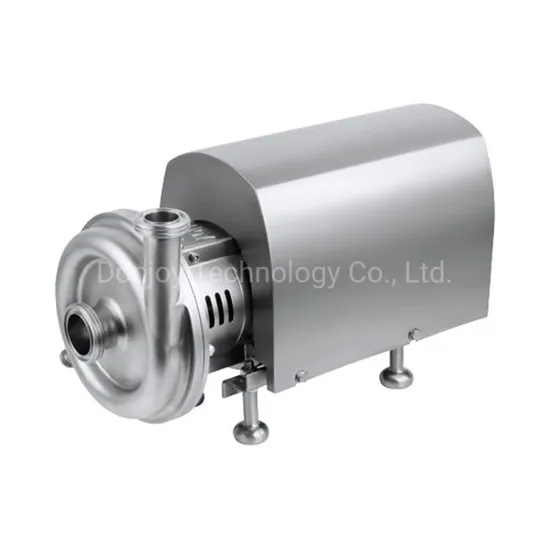

Stainless steel Impeller Centrifugal Pump with ABB Motor for DairyThe pump is foraged and with stainless steel motor cover. With sanitary and cost-effective design,
it is ideal for dairy, beverage, food processing, pharmaceutical and fine chemical industries.
Impeller Type
Open impeller and Close impeller
Parameter
Max. Flow: 150 m3/h
Max. Lift: 70H(m)
Max. Pessure: 7bar/99PSI
Max. Temperature: 150C/248. F
Max. Speed: 3600 min-1
Configuration
Mechanical seal in C/SIC and SIC/SIC single or double
Gaskets (standard): EPDM (FDA approval)
Connections: Clamped, male, flanged, DIN, SMS, RJT, IDF
Motor: 2900, 1450, 3600 rev. /min., 50HZ, 60HZ
Parts in contact with media: AISI 316L/AISI304 (Other parts AISI 304)
Surface Treatment
Inside surface finishing: Ra≤ 0.8 um
Outside surface finishing: Sandblast or Mirror polished
Model Selection
| Model | 20 T/24 M | 30 T/24 M | 40 T/36 M |
| Flow | 20 T | 30 T | 40 T |
| Total Head | 24 m | 24 m | 36 m |
| Suction Stroke | 5-6 m | 5-6 m | 5-6 m |
| Impeller Diameter | 192 mm | 192 mm | 215 mm |
| Inlet/Outlet Diameter | 63.5/63.5 mm | 76.5/63.5 mm | 76/76 mm |
| Motor Type | M2QA132S4A | M2QA132M4A | M2QA160SM4A |
| Power | 5.5kw(380V/50HZ ) | 7.5kw(380V/50HZ ) | 11kw(380V/50HZ ) |
| Speed | 1420 r/min | 1420 r/min | 1420 r/min |
| Dimensions(L*W*H) | 760*320*475 | 760*320*475 | 1006*360*600 |
| Machine Weight | 110 kg | 116kg | 168kg |
