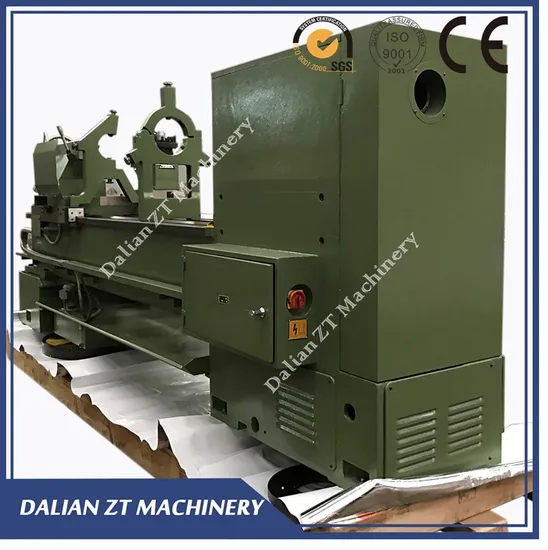

Large Spindle Bore Conventional Horizontal Lathe CW6163X3000
| US$18,000.00-20,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CW6163Cx3000
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Position
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Plinth
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
630mm
Turning Length
3000mm
Spindle Bore
105/130mm
Tailstock quill diameter
100mm
Tailstock quill travel
260mm
Tailstock quill taper
MT6
Bed width
550mm
Transport Package
Wooden Case
Specification
swing 1000-1600mm
Trademark
ZT
Origin
China
HS Code
84581900
Production Capacity
1000 Sets/Year
Product Description
| Model | Unit | CW6163C CW6263C | CW6180C CW6280C | CW6193C CW6293C |
| Swing over bed | mm | 630 | 830 | 930 |
| Swing in gap | mm | 890 | 1090 | 1190 |
| Swing over cross slide | mm | 350 | 550 | 650 |
| Distance between centers | mm | 1000,1500,2000,3000,4500,6000 | ||
| Effective length in gap from face plate | mm | 300 | ||
| Spindle nose | C11 or D11 | |||
| Spindle bore | mm | 105,130 (optional) | ||
| Spindle speed/Step | rpm/steps | 10-800/18 | ||
| Cross slide travel | mm | 480 | ||
| Top rest travel | mm | 225 | ||
| Rapid traverse | mm/min | Z:3240mm; Z:1870mm | ||
| Tailstock quill diameter | mm | 100 | ||
| Tailstock quill travel | mm | 260 | ||
| Tailstock quill taper | MT6 | |||
| Bed width | mm | 550 | ||
| Metric threads | mm/kinds | 1-240/53 | ||
| Inch threads | Tpi/kinds | 30-2/31 | ||
| Module threads | Mm/kinds | 0.25-60/46 | ||
| Diametrical pitch threads | 60-1/2/47 | |||
| Main motor power | kW | 11 | ||
| Gross weight of machine | kg | 4200 4400 4650 5450 6500 7800 | 4400 4600 4850 5650 6700 8000 | 4500 4700 5000 5800 6800 8100 |
Standard Accessories:
3-jaw chuck; dead center; reduction sleeve, foundation bolts;
Optional Accessories:
4-jaw chuck, face place, drive plate, steady rest, follower rest, electric turret
Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item.
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
