Fresadora, Bed Type Milling Machine (BM715)

Product Description

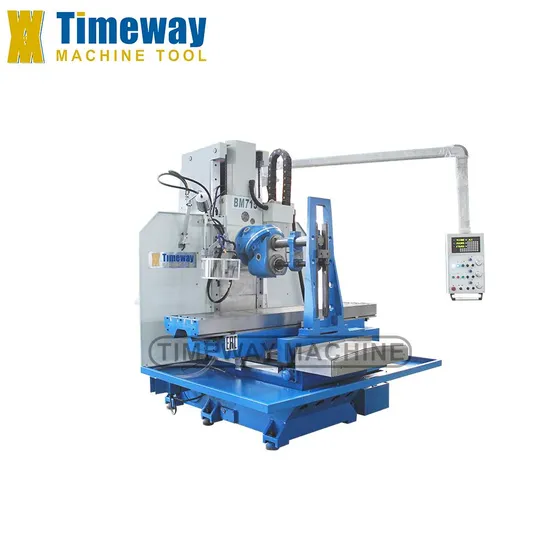

Bed Type Milling Machine BM715
The bed milling machine is a milling machine in which the worktable cannot be raised and lowered, but can be moved longitudinally and laterally along the guide rail of the bed base, and the milling head or column can be moved vertically. Because the parts of the lifting table milling machine that move up and down at any time in the processing state include the work table, the saddle, the lifting table and the workpiece, which have many layers, heavy weight, and poor system rigidity; the milling head moves up and down along the bed guide, and the weight of the lifting part of the milling head Only 1/5 of the weight of the lifting part of the lifting table milling machine (work table, saddle, lifting table and workpiece), which not only facilitates lifting and lowering, but also greatly improves the overall rigidity of the machine tool.
Features:
* Servo feed motors on X, Y, Z-axis ensures response,accuracy and consistent feed;
* Micro switch on the manual knee handle for additional operator safety;
* Tool box and operations manual;
* Ball screw X, Y-axis providing smooth and accurate operation;
* Coolant system and halogen light included;
* Square construction slides for X, Z-axis to maximize rigidity;
* Clutch hand wheels X, Y-axis;
* Automatic oil lubrication pump and reservoir;
* Universal head swivels to horizontal position;
Standard Accessories:
Draw bar
ISO50 milling Chuck
ISO50 milling arbor
Horizontal milling arbor
7:24 Middle sleeve
Tool box
Oil gun
Foundation bolts
Inner hexagon Spanner
Double-end wrench
Horizontal milling arbor supporting
Operation manual

Specification	Unit	BM715
Table size	mm	2100 x 500
Spindle taper	-	ISO50
Longitudinal travel (X-axis)	mm	1500
Cross travel (Y-axis)	mm	670mm
Vertical travel (Z-axis)	mm	670mm
T-slot number/width/distance	mm	4/20/100
Type of slides	-	Square (Y & Z)
Distance from spindle axis to column guideway	mm	610mm
Type of table power feed (X , Y & Z-axis)	-	Servo Drive
Longitudinal & Cross feed (X & Y-axis)	mm/min	20 ~ 1800
Longitudinal & Cross rapid (X & Y-axis)	mm/min	3500
Vertical feed (Z-axis)	mm/min	10 ~ 900
Vertical rapid (Z-axis)	mm/min	1750
Work table load capacity	kg	2000
Spindle speeds vertical / horizontal	r.p.m	12steps (35-1345)
Motor power	kw	7.5(10HP)
Floor space required	mm	4925 x 2380
Overall dimension	mm	3300 x 2380 x 2750
N.W / G.W	kg	7300 / 8000

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
