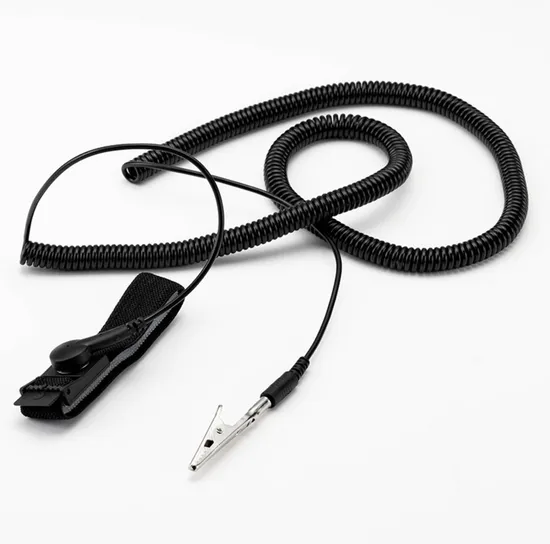

Anti-Static ESD PVC/PU Wrist Strap Blue/Pink/Black Color Wrist Band

Product Description

Anti-Static ESD PVC/PU Wrist Strap Blue/Pink/Black Color Wrist Band
Anti-static wrist strap working principle: The human skin contacts the conductive material on the wrist strap. When the wrist strap is grounded, the static electricity generated by the human body is quickly discharged through the grounding system.
Features
Material: PVC conductive cable,conductive yarn,rubber Band,metal cord and clip
Built-in resistance:1MΩ
Cable length:Length: 1.8m (2.0m, 2.5m optional)
Cable diameter: 2mm
Decay time: <0.1s
Durability:30000 times of catapults
Material: PU/PVC optional
Specification wire diameter: 2.0/2.4/3.0mm optional
Specification length: 1.8/2.4/3.0 meters optional
Anti-static wrist strap is an anti-static product. It can be used in conjunction with anti-static clothes, anti-static gloves, anti-static shoes, etc.
It has become a necessity for electronics factories, semiconductor factories, and high-precision production enterprises, but many people don't know how to distinguish their skills.
The quality of the belt is generally tested when it is first received, but during the use process, if you don't go back and test it frequently, the staff will not be able to do so.
I sometimes find out whether there is a problem with the wrist strap, which will cause the static ring to look intact, but in fact there is a problem.
There is also a loophole in the protection. How to solve this problem has become a difficult problem in the electrostatic protection scheme.
Method 1: In daily use, strictly follow the use of anti-static wrist straps to avoid employee negligence.
Meaning, secondly, it can also reduce damage to the wrist strap. Use of anti-static wrist strap:
1. The stainless steel shell of the anti-static wrist strap should be on the inner side of the left wrist. The left hand is worn mainly because the right hand is more active and the inner side of the wrist is connected.
The touch resistance is the smallest.
2. The wrist strap should be in close contact with the skin, not loose, and not separated by clothing.
3. The anti-static wrist strap is tested and recorded every time it enters the workshop. The tightness shall be subject to the passing test, and the unqualified shall be adjusted immediately
Adjust or replace.
Method 2: Install the wrist strap monitoring device, the wrist strap monitoring system, the complete connection of the wrist strap, and the static electricity of the wrist strap
It can be monitored in real time, and it can not only alarm when employees are negligent or use the wrist strap incorrectly, but also when static electricity or hands occur.
Alarm when the wristband is damaged. The whole process monitoring can ensure the normal use of the anti-static work area grounding system.
