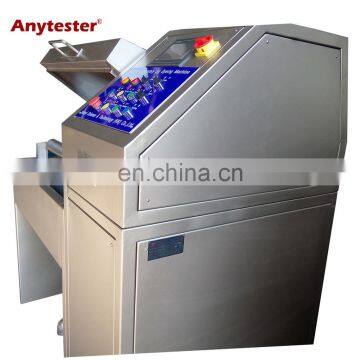

Textile Lab Jig Dyeing Machine

Product Description

Product Description
Product Description
HY0160 Series Laboratory Jig Dyeing Machine is special design for lab normal temperature jig dyeing. It’s applicable to retreatment, cooking, bleaching and dyeing of cotton, flax, chemical fiber blending and nylon interweaving as well as alternative method is used for self-control. This jig dyeing machine is an ideal solution to cut down the waste of time and invest due to bad dyeing technology. It’s also helping you to develop new dyeing formula.
Application
It’s applicable to retreatment, cooking, bleaching and dyeing of cotton, flax, chemical fiber blending and nylon interweaving as well as alternative method is used for self-control.
Features
1. Equipped with Industrial Programmable Logic Controller to perform the function of constant speed and constant tension control
2.Self-repeated winding and calculation
3.Speed adding and reduction, tension adding and reduction function
4. Uniform swing function and prevent liquid gathers lower side
5.Direct and indirect heating and self-control of temperature
6.Dyeing liquid circulation and selective feeding liquid level control
7.Two A/C motor drive, roll back available by hand control or automatically
8.Constant speed and tension control, same roller diameter as production machine, real-simulate production
Specification

Model	HY0160A Laboratory Jig Dyeing Machine	HY0160B Laboratory Jig Dyeing Machine
Heating Method	electric heating	steam heating
Roller Diameter	Φ160-Φ180mm
Two Main Roller Distance	350-400 mm
Guide Roller Diameter	Φ125mm
Dyeing tank	40L/m
Speed Range	0 ~ 50m/min settable
Tension range	0 ~ 80kg
Temperature range	RT. ~ 98oC
Temperature accuracy	±2 oC
Heating Power	6 KW
Power supply	380V, 50Hz
Dimensions	1500´950´1480mm
Weight	750kg
