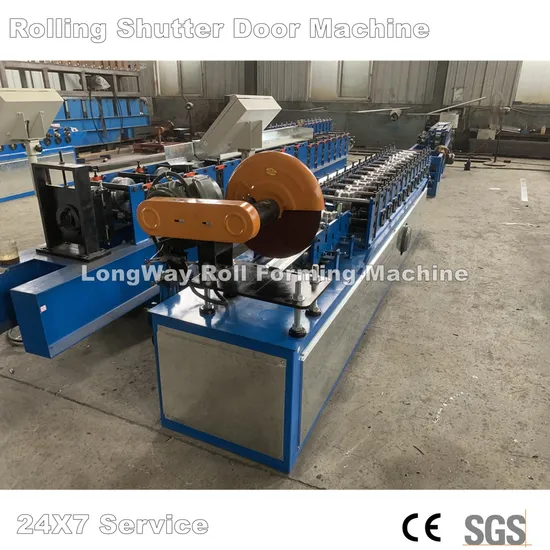

Galvanized Roller Shutter Door Slat Rolling Shutter Door Roll Forming Machine

Product Description

Product Description
The Galvanized Roller Shutter Door Slat Rolling Shutter Door Roll Forming Machine is a specialized piece of equipment designed for the efficient production of steel roller shutter door strips. These strips are essential components of roller shutter doors, which are widely used in commercial, industrial, and residential settings for security, insulation, and space-saving purposes
Precision Strip Forming:
The machine is engineered to transform steel coils into precise, uniform shutter strips. It uses a series of rollers to gradually shape the steel into the desired profile, ensuring consistent quality and dimensions.
Customizable Profiles:
The machine can be tailored to produce shutter strips in various shapes, sizes, and thicknesses, depending on the specific requirements of the roller shutter door design.
High-Speed Production:
Designed for industrial-scale manufacturing, the machine operates at high speeds, enabling the production of large quantities of shutter strips in a short time frame.
Detailed Photos
Omega Profile Sizes
Un-powered, Manually control steel coil inner bore shrinkage and stopMax Feeding width: 500mm,coil ID range ф460-520mmCapacity:Max 2 Tons
Hydarulic type as option
The feeding guide device at the main entrance of the machine during work,Raw materials enter into the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently
Forming mold: 45# steel, through vacuum quenching heat treatment to HRC60-62 ° The precision machining roller surface with CNC latheShafts material:45# steel,CNC lathes,Heat Treatment,hard Chrome CoatedWith thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)Main motor and 12 reducers combination driving,about 16 Step to formMain Motor 4KW,Frequency speed control
Cutting And Punching DeviceCutter stype:Not stop cutting and punching
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Hydraulic power:4 KW
Control The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
Auto Packing system
Function: Receiving the finished channels.
Product Parameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → Cutting →Products receiving table

Raw Material	Coil Type	GI AL
	Width	As profile design
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw
	Cutter power	4kw
Forming speed		10-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		Casting steel
Forming shaft		50mm solid shaft with heat treatment
Material Of Rollers		45#
Forming stations		16 Rows
Transmission Way		Gear or Chain
Type of cutting		Hydraulic Pillar type and Flying cut
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		4.5m×1.5m×1.2m
Total weight (Approx)		2.6T

Installation Instructions
Applications of Galvanized Roller Shutter Door Slat Rolling Shutter Door Roll Forming Machine Roller Shutter Door Manufacturing:
Used to produce high-quality steel strips for roller shutter doors in commercial, industrial, and residential settings.
Security Production:
Ideal for creating durable and precise strips for security door and barriers.
Industrial Shutter Systems:
Suitable for manufacturing heavy-duty shutters used in warehouses, factories, and storage facilities.
Fire-Rated Shutter Doors:
Capable of producing strips for fire-resistant roller shutters, commonly used in safety-critical environments.
Insulated Shutter Doors:
Used to create strips for insulated roller shutters, which are essential for temperature control in buildings.
Company Profile
Packaging & Shipping
Anti-Corrosion Protection: Spraying anti-corrosive oil on rollers to prevent oxidation during shipping, ensuring long-lasting performance.
Oxidation Prevention: Wrapping the entire machine with isolation film to safeguard against oxidation during transit.
Cost-Effective Shipping: Optimized space planning to minimize transportation costs for customers.
Secure Transit: Properly fixed and secured to prevent any damage during transportation, ensuring the machine arrives in perfect condition.
