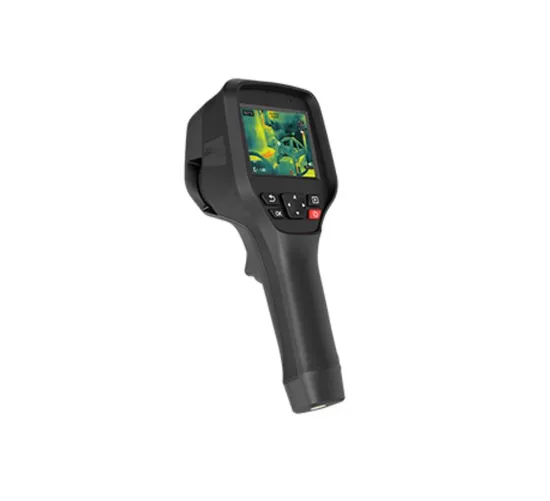

Uncooled Infrared Camera for Gas Can Detect a Variety of Gas Species

Product Description

High-definition band-pass infrared detector makes gas detection clearer
Customized band-pass filter detector (C: 7.0-8.5μm, F: center wavelength 10.55μm), to eliminate stray light interference and make gas detection is clearer.
Approximate thermal sensitivity of cooled detectors: as low as 23mK, to capture even smaller amounts of gas.
Combined with a 23° custom lens, the spatial resolution (IFOV) is as low as 0.63mrad, providing a wider working distance or finer gas details.

Can detect a variety of gas species
Carefully selected infrared bands can observe dozens of gases including methane, sulfur hexafluoride, ethylene, ammonia, Freon, nitric oxide, sulfur dioxide, etc.

All-rounder, complete multiple tasks with ease
3.5-inch touch screen + complete analysis function support: from the inspection site to the report output, the workflow is fully assisted to help you complete the task easily.
Gas leakage in the industrial production process has always been a time-consuming and labor-intensive inspection problem because it is invisible to the naked eye. InfiRay Tianji G600 Uncooled Infrared Camera for Gas Detection can be used for the leakage of natural gas (CH4), refrigerant (freon), ammonia (NH3), sulfur hexafluoride (SF6) and other gases The non-contact method of thermal imaging helps you quickly locate the location of a small amount of gas leakage.

Resolution: 640 x 512
IFOV: 0.63 mrad
NETD: 23mk
Dozens of gases can be observed
Specifications of Tianji G600 Uncooled Infrared Camera for Gas Detection

Model	G600C	G600F
Version	Overseas
Thermal Imaging Parameters
Detector Type	Uncooled VOx
Detector Resolution	640×512
Infrared Spectral Band	7.0-8.5μm	10.55μm central wavelength
Gases Detectable	Methane, nitrous oxide, sulfur dioxide, phenol, ethyl acrylate,2-Ethylhexyl acrylate, Freon (R13, R13B1, R123, R125, R134A, R417A, R422A, R508A, etc.)	Sulfur hexafluoride, ammonia, ethylene, ethylene ether, vinyl chloride, trichloroethylene,methyl vinyl ketone, propylene, acrolein, acrylonitrile, ethyl cyanoacrylate, allyl fluoride, allyl chloride, allyl bromide, furan, etc.
Pixel Size	2μm
Thermal Sensitivity	23mK
IFOV ( Spatial Resolution)	0.63mrad
Detector Frame Rate	30Hz
Focal Length	19mm
FOV	23°×18°
Focusing Mode	Manual focusing
Measurement Range	-20 ºC~ +120 ºC
Measurement Accuracy	±2% or ±2ºC
Resolution of Temperature Measurement	0.1°C
CameraFunctions
Temperature Measuring Mode	Center point/hot and cold spot tracking and temperature display
Customized Measurement on Points, Lines, and Areas	Movable points/lines/areas; up to 10 points, areas, and lines
Temperature Measuring Unit	Celsius, Fahrenheit, Kelvin
Emissivity Settings	Adjustable between 0.01 and 1.00 with a step size of 0.01
Ambient Temperature Settings	-10ºC to +50ºC with a step size of 1ºC
Distance Settings	1-20m with a step size of 1m
Image Mode	Infrared, dual-spectrum fusion, visible light, PIP
Palettes	10
Temperature Alarm	Available
Alarm Type	Image alarm
Temperature Scale	Manual/Auto temperature range
Laser Pointer	Available
Visible Light Camera	5 megapixels
Video/Photo Storage	XX-IR.jpg (Infrared image with temperature data) and XX-DC.jpg (visible-light image); videos without data
Voice Annotation	Available
Language	English + other languages (Polish, Russian, Korean, Hungarian, Portuguese (Brazil), German, French, Spanish, Italian, Turkish, Traditional Chinese, Japanese), 13 languages in total
Display Size	3.5-inch touch screen (480 × 640)
Image Naming	Auto/manual naming, naming by scanning QR code
Memory Card	Standard 32 GB MicroSD card
Battery	Rechargeable and detachable lithium-ion battery
Power Interface	USB TypeC
Connecting Methods	USB, SD card, WiFi (AP mode or networking mode)
Charging Time	About 3 hours
Operating Time	About 3 hours
Power Management	Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, never
Others
Analysis Software	PC&APP
Tripod	Available
Operating Temperature	-10 ~ +50°C
Storage Temperature	-20 ~ +60°C
Relative Humidity	10%~95%, non-condensing
Drop Protection	2m
IP Grade	IP54(IEC 60529)
Shock and Vibration	Impact 25g (IEC 60068-2-27);vibration 2.5g (IEC60068-2-6)
Dimensions (H×W×D)	256.4 ×105.1 × 105.3mm
Weight	About 670g
Authentication	CE/FCC/UKCA/ROHS
Accessories	5V 2A power adapter, USB cable, SD card, battery×2,
	QSG, desktop charger, calibration certificate, package list
