New Automatic Wire Bending Machine 2D Stainless Steel Bending Forming Equipment

Product Description

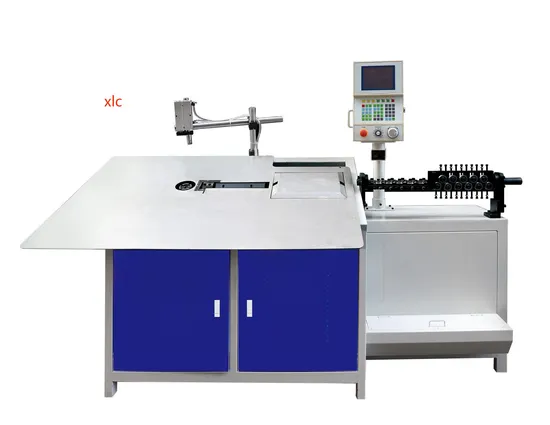

Products Description 2-6 mm CNC wire bending machine The machine is very powerful and multifunctional. It includes straighten, cutting, automation, punching functions. You just feed it steel and done. By the way, the efficiency is 4-5 times as traditional machinery. You don't need to develop mold and other straighten tools. Just input CAD files, whatever shape the machine can make it. Why not liberate your hand to do other thing? PRODUCT SPECIFICATIONS

No	Type	Information& Data	Type	Information&Data
1	Wire diameter	2-6 mm Iron Wire	Applicable wire	Round,flat,square
2	Electrical voltage	Three-phase 380V	Machine size	2800*850*1500mm
3	Straightening wheels	Group 22(GB Cr12)	Machine weight	950KG
4	Bending die	SKD11/51 up to 62°	Storage	10000 sets of data
5	Feeding wheels	3 groups(Cr12 )	Feeding speed	90m/min(max)
6	Feeding motor	2.3KW	Bending speed	300r/min angle ±180°
7	Bending motor	1.5KW	Effciency	20-25pcs/Min(200*200mm)box
8	Cutter motor	1.0KW	Control panel	Touch screen+button

PRODUCT CONFIGURATION PLC made from ARCUCH Imported SANYO moto Linear guide and ball screw from Taiwan HIWIN Exportation market percentage JC automatical machine can export all over the world and main market is middle-east, Southeast Asia and Eastern Europe market. Welcome contact us to ask more details. Our Advantages Servo The machine takes servo feeding, cutting to produce product and control each servo electrical moto work time via PLC computer programme system Screen It can operate via touch screen and automation bending. By the way, it is easy to set up parameter and maintain due to understandable programming. System High precision High twist force High operation speed Large yield Alarm function You can set target quantity at the screen for alarming. What's more. It can continue working when alarming and restart next counting. Insurance function If the machine can't feed due to breakdown, it will stop automation and alarming. Material of wire Steel wire, low carbon steel wire, stainless steel wire and other color metal such as copper, aluminium and alloy. Makeable product Car seat frame Art work Bicycle basket Coil Spring Flower basket Moto accessories Kitchen basket Pet cage Umbrella frame SIMILAR PRODUCTS 3D wire bending machine Servo Straighten and cutting machine Curved middle line butt welding machine FAQ Q1. Why choose us?
A. Our founding team has more than 20 years of experience in the R&D and manufacturing industry of metal forming and welding machinery. What we offer is a good product at a reasonably price.
Q2. Can I customize the product?
A. Yes . We can customize production equipment solutions according to your product requirements .
Q3. Can I get a sample?
A. Yes. But the proofing cost and shipping are negotiated by both parties.
Q4. What's the delivery time?
A. The delivery time needs to be determined by both parties through negotiation .
Q5. How do I order from you?
A. Consulting → equipment plan quotation →negotiation→ prototyping →PO/PI→ payment deposit → production → debugging →
delivery→further.
If you want more product information, please feel free to contact us!
