China Automatic Plastic 1L 2L 5L HDPE PP Toy, Bottle, Drum, Bucket Canister Container Extrusion Making Blowing Blow Molding/Moulding Machine
| US$20,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PXB90D
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Extrusion System
Hard Gear Surface Decelerator + Japan Inverter
Auto Deflashing
Available
Total Weight
8.0t
Output(Dry Cycle)
320 * 2 PC/Hr
Die Head Option
Single, Double, Tri-Head, Tetra-Head
Transparent Line
Available
Production Usage
Bottle, Toy, etc
Multi-Layer
Available
Moog
100 Point
Average Energy Consumption
31kw
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 12L
Trademark
Puxin
Origin
Suzhou
HS Code
847730100
Product Description

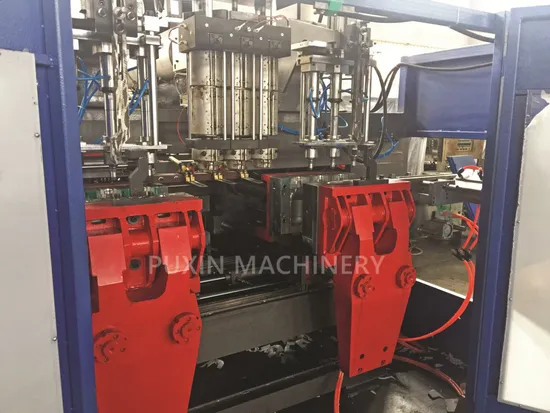

PXB90D
5L - 12L Double Station Blow Molding Machine
Special Feature:
- High Speed Double Station For HDPE, PE, PP, PS Material Product
- Double Capacity with Energy Saving
- Perfect Usage for 5L - 12L Bottle, Toy, Jerry Can, Container
- Optional Transparen Line
- Quick Action Speed, Stable Running
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | HITECH | Taiwan |
| Inverter | MITSUBISHI | Japan |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | SONON | China |
| Motor | SIEMENS | China |
Basic Equipment
| Clamping system | Double Station+High-precision guide+large arm cylinder axle |
| Extrusion System | Hard gear surface decelerator+Japan inverter |
| Die system | Center -incoming extrusion die with special steel |
| Hydraulic system | Japan hydraulic valve seal and proportional control |
| Control system | Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts |
Parameters
| Specifications | ||
| Material | PE,PP, PVC, PA... | |
| Max container capacity | L | 12 |
| Number of die | Set | 1, 2, 3, 4 |
| Output(dry cycle) | Pc/hr | 320 |
| Machine Dimension(LxWxH) | M | 4.5x3.5x2.9 |
| Total weight | T | 8.0 |
| Clamping Unit | ||
| Clamping force | KN | 95 |
| Platen opening stroke | mm | 200-600 |
| Platen size | mm | 550x460 |
| Max mould size(WxH) | mm | 550x430 |
| Mould thickness | mm | 210-330 |
| Power | ||
| Max drive | KW | 67 |
| Total power | KW | 78 |
| Fan power for screw | KW | 0.6 |
| Air pressure | MPA | 1.0 |
| Air consumption | M3/min | 0.9 |
| Average energy consumption | KW | 31 |
| Extruder unit | ||
| Screw diameter | mm | 90 |
| Screw L/D ratio | L/D | 24 |
| Melting capacity | Kg/hr | 130 |
| Number of heating zone | zone | 4 |
| Extruder heating power | KW | 21.4 |
| Extruder driving power | KW | 37 |
| Die | ||
| Number of heating zone | zone | 3 |
| Power of die heating | KW | 5.7 |
| Max die-pin diameter | mm | 180 |
| Center distance of double die | mm | 250 |
Delivery Time:
- No later than 45 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
