90ºC THHN/THWN-2 PVC Insulated,Nylon cable ,600V Power Cable

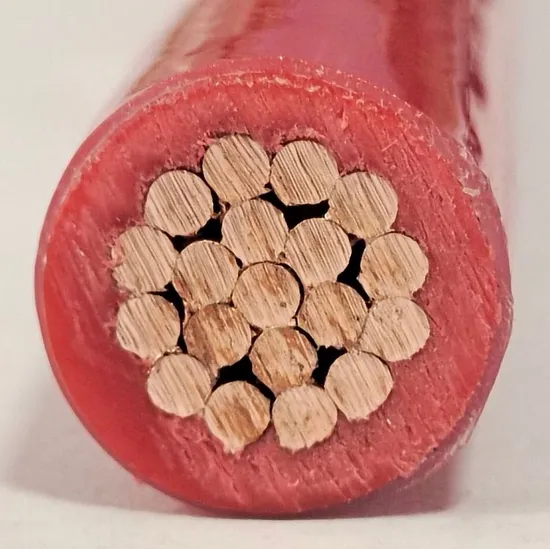

APPLICATION A heat-resistant thermoplastic (PVC) insulation with nylon jacket suitable for the type of service where the conductor temperature does not exceed 90°C in dry location or 75°C in wet location. It is employed as insulation for class THHN building wire CONSTRUCTION 1.Annealed Copper Solid/Strand Conductor 2.Core insulation of polyvinyl chloride (PVC) 90ºC,Color can be on request 3.Jacket of Nylon THHN/THWN/THWN-2 Difference:

THHN	THWN	THWN-2
T = Thermoplastic	T = Thermoplastic	T = Thermoplastic
HH = High Heat Resistance	H = Heat Resistance	H = Heat Resistance
	W = Water Resistance	W = Water Resistance
N = Nylon Coating	N = Nylon Coating	N = Nylon Coating
Temperature Rating = 90°C (Dry)	Temperature Rating = 90°C (Dry), 75°C (Wet)	Temperature Rating = 90°C (Dry & Wet)

TECHNICAL DATA SHEET THHN (600V/90ºC)

Conductor Size (mm²)	Approximate AWG/MCM	Nos. Of Strand Wire	Conductor Diameter (mm)	Insulation Thickness (mm)	Jacket Thickness (mm)	OD (mm)	Appr. Weight (kg/km)	20ºC Conductor D.C Resistance Max.(Ω/km)	Ampacity (A)
2.0	14/7	7	1.8	0.4	0.1	2.8	24	9.42	35
3.5	12/7	7	2.4	0.4	0.1	3.4	39.5	5.3	40
5.5	10/7	7	3.0	0.5	0.1	4.2	61	3.4	55
8.0	8/7	7	3.6	0.8	0.13	5.46	93.2	2.36	75
14	6/7	7	4.8	0.8	0.13	6.66	155	1.34	100
22	4/7	7	6.0	1.0	0.15	8.3	240	0.849	140
30	2/7	7	6.9	1.0	0.15	9.2	310	0.618	170
38	1-19	19	8.0	1.3	0.18	10.96	416	0.491	195
50	1/0-19	19	9.0	1.3	0.18	11.96	516	0.387	235
60	2/0-19	19	10	1.3	0.18	12.96	626	0.311	260
80	3/0-19	19	11.5	1.3	0.18	14.46	811	0.228	320
100	4/0-19	19	13	1.3	0.18	15.96	1021	0.187	370
125	250MCM	37	14.7	1.6	0.18	18.26	1306	0.138	420
150	300MCM	37	16.1	1.6	0.2	19.7	1553	0.124	475
175	350MCM	37	17.3	1.6	0.2	20.9	1786	0.104	535
200	400MCM	37	18.2	1.6	0.2	21.8	1960	0.094	570
250	500MCM	37	19.0	1.6	0.2	22.6	2393	0.0739	655
300	650MCM	61	20.5	1.8	0.23	24.6	2835	0.0601	720
400	800MCM	61	26.1	1.8	0.23	30.2	3936	0.0470	890
