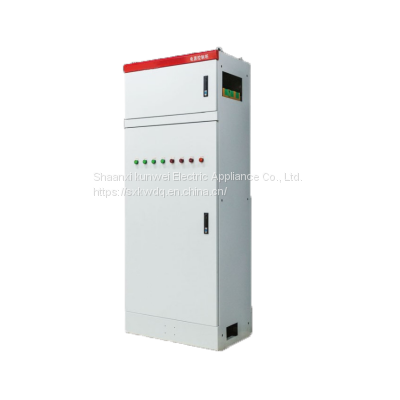

ATS dual power automatic transfer switch distribution cabinet complete set of electrical non-standard customization

Product Details

Product Description

Product Description
ATS dual power supply automatic switching cabinet can realize fast on-load switching of two power supplies. It can be used for first-class loads specified by the state, such as high-rise buildings, post and telecommunications, coal mine ships, industrial assembly lines, medical and health facilities, military facilities, etc. ATS is mainly used in emergency power supply system, which automatically switches the load circuit from one power source to another (backup) power source to ensure continuous and reliable operation of important loads. Therefore, ATS is often used in important places where electricity is used, and its product reliability is particularly important.
ATS dual power switching cabinet is a universal dual power supply automatic cut-off device. This product can input 2 independent AC380V, 500KW power supply branches at the same time, that is, the main power supply and the backup power supply. When the main power supply circuit stops, the backup power supply branch The circuit is automatically turned on within 20s to supply power to the load. When the main power supply is restored, the dual power supply controller automatically switches to the main power supply, and the backup power supply stops supplying power. The dual power supply controller has a CPU and HMI operation interface, and has a circuit scheme flow chart , status indication, fault indication, forced switch button. The product adopts safety circuit design, and the operation is reliable and safe. The dual power switch adopts advanced control modules and perfect logic as the basis for the design of the conversion cabinet. It can start and stop the generator sets with automatic functions and different types of generator sets of various brands through a single-brand generator set to complete a complete mains and The automatic power generation conversion system is also suitable for other non-switching between the two power sources.
ATS dual power switching cabinets are widely used in industrial and mining, enterprises, post and telecommunications and other important power departments. The entire cabinet is designed to meet the customer's all-round connection requirements. When installation or inspection is required, it is very convenient for users to install, debug and maintain.
