Popular Universal Milling Machine High Speed Universal Rotary Head Milling Machine

Product Description

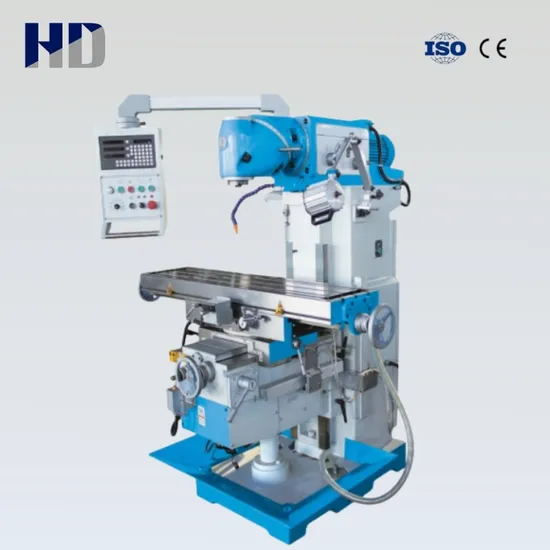

Product Picture
Features:
The vertical spindle has two main components. The angel of two rotation axis is 45degree.We can adjust the milling head to any space angle by rotating two main components, processing more conveniently. Horizontal spindle adopts three-support structure, increasing spindle rigidity, and dynamic braking system with large torque quickly stop and reliability. Y.Z axes of worktable can be both manual and motorized feed, and rapid feeding with high efficiency. X axis travel is 1000mm, which expands the process range. X, Y,Z axes guidways adopt harden and grinding, high accuracy and long life. The transmission gear use several lubrication forms like centralized lubrication. oil-immersed lubrication, hand-operate lubrica.ation, oil cup fixed-point lubrication, which have goodeffect with low noise The structure has so good rigidity that it can bear heavy cutting work load, And it uses carbide cutting tools to make high speed cutting.
Specification Parameter

Item	Unit	XL6230	XL6230A	XL6230C
Table size	mm	1270*300	1370*300	1370*300
X/Y/Z travel	mm	720*280*400	820*300*400	1000*360*400
Max.worktable loading	kg	300	300	300
T-slots(NO./width/pitch)	mm	3*14*80	3*14*80	3*14*80
Spindle speed series and range	rpm	V 45-1660(11steps)
Distance between spindle nose and table surface	mm	100-500	100-500	100-500
Table rapid speed(X/Y/Z)	mm	1335/1335/1000	1335/1335/1000	1335/1335/1000
Dimension	mm	1730*1760*1700	1830*1760*1700	1830*1760*1700
Machine weight	kg	1550	1600	1700
