100/200L 500/1000L PVC Powder Mixer Heating High Speed Mixer and Cooling Mixer Unit with Veritical and Horizontal Type

Product Description

Product Description

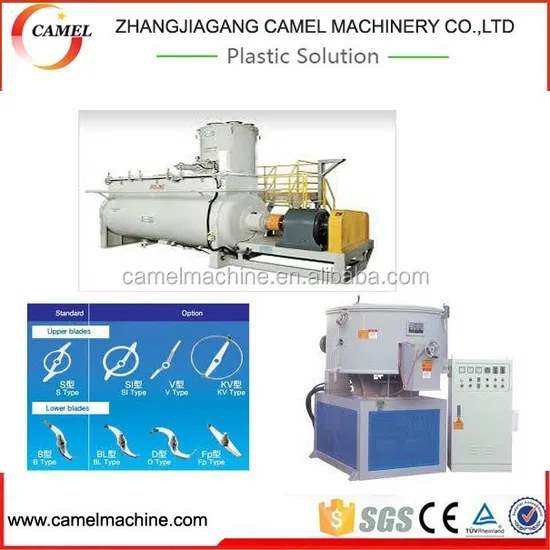

PVC plastic hot and cold mixer
The unit combines hot mixer and cooler mixer together .The material will get into cooler mixer for cooling automatically when they finish heating ,exhausts remaining gases and avoids agglomeration. Through setting the time or temperature, the machine can be operated automatically.This unit is developed by importing and absorbing foreign advanced technology. By adopting PLC control,
The PVC plastic hot and cold mixer is widely used for mixing, drying, and coloring for all kinds of plastic resin, especially for large production capacity. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning. The structure of cooling mixer is horizontal type with spiral-shape stirring blades, without dead corner and prompt discharging within short time.
Product Parameters

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000
Total capacity(L)	100/200	200/500	300/600	500/1000
Efficient (L)	65/130	130/320	200/400	350/640
Motor power KW	14/22/7.5	30/42/11	40/50/15	47/67/15
Paddle Speed	650/130/180	475/950/130	475/950/130	430/860/60
Water consumption	3T/H	4T/H	4T/H	5T/H
Heat/cooling way	electric self-friction water cooling	electric self-friction water cooling	electric self-friction water cooling	electric self-friction water cooling
Mixing time(min)	8-10
Outline dimension mm	2500 ×2000×2200	4500 ×2200×2500	4500 ×2200×2500	4600 ×3000×4000
Weight kg	3T	3.5T	3.5T	4.5T

Technical Parameters of PVC horizontal mixer :

Model	SRL-W500/1600	SRL-W800/2000	SRL-W800/2500	SRL-W800*2/4000	SRL-Z1000/2500
Total cubage(L)	500/1600	800/2000	800/2500	1600/4000	1000/2500
Effective cubage(L)	330/1000	560/1400	600/1500	1120/2700	700/1750
Mixed speed(r/min)	430/860/70	330/660/55	330/660/60	350/700/65	350/700/50
Heating/cooling manner	Self-friction/water cooling
Mixed time(min)	8-12	8-12	8-12	8-12	8-12
Motor power(kw)	47/67/15	60/90/18.5	83/110/22	83/110*2/45	83/110/22
Discharge method	Pneumatic

we can custom make different size if customer has special requirement
Our serives
We will test machines in our factory before delivery. Customer check machines running in our factory, after customer is fully satisfied with the quality, then delivery, when machines arrive in customer's factory, we will send our engineer to test the machine in customer's factory
We supply machines technical support, material formulation; guarantee machines and spare parts supplyCompany Profile
Zhangjiagang Camel Machinery Co., Ltd is one of professional manufacturers for plastic extrusion and recycling equipment in China. CAMELMACHINERY aim is to be a top plastic equipment supplier in the world, base on the spirit of this principle, we are not only made our best to meet the market demand but also enhance innovative ability.
CAMELMACHINERY offers following major product lines :
1.PVC/PE/PPR/PP pipe extrusion line
2. PVC garden hose/spiral hose/steel wire reinforced hose extrusion line
3. WPC extrusion line
4.PET bottle recycling line
5.PE/PP film recycling line
6.UPVC PVC ceiling wall panel extrusion line,
7.WPC foam board production line,
8.Single shaft shredder,
9.Double shaft shredder,
10.Plastic crusher and so onPackaging & Shipping
FAQ
1. Q: Are you trading company or manufacturer ?
A: We are factory.
2. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
3. Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4. Q: What is your terms of payment?
A: 30% T/T in advance ,70% balance before shipment or Negotiable.
