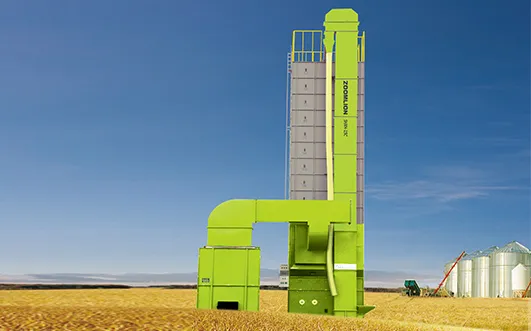

12 Ton Zoomlion Grain Dryer with High Quality
Basic Info.
Model NO.
DC125
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Power Source
Diesel
Harvest method
Vibration fall
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Green
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Warranty
1 Year
Total Weight
3040 Kg
Transport Package
Nude/Roro
Specification
5270*2500*2960mm
Trademark
ZOOMLION
Origin
China
HS Code
8433510090
Production Capacity
100/Month
Product Description
12 ton Zoomlion Grain Dryer with High QualityProduct Description
Low-speed spiral conveying with low grain damage;
Low damage elevator for high grain drying quality;
Thin drying layer with large airflow to ensure high drying efficiency and quality;
Equipped with impurities clearance device to reduce the impurity rate;
Special wear-resisting material used on the grains flow part for long service life;
Special wear-resisting material likes stainless steel used on the collecting unit and low speed can improve wear resistance and reduce grain damage;
Automated drying monitoring system for easy operation and management;
Optional installation of imported online grain moisture tester for real-time precise moisture test;
Multi heat supply models and fuel models available for drying cost saving.
Product Parameters
| Sales identification number | DC100 | DC125 | DC150 | ||||
| Model | 5HXG-10C | BHXG-12.5C | 5HXG-15C | ||||
| Structural style | Batch-type circulation | ||||||
| Total weight | 2840 | 3040 | 3240 | ||||
| Capacity(kg) | Unhusked rice(0.56T/m³) | 2500~10000 | 2500~12500 | 2500~15000 | |||
| Wheat(0.68T//m³) | 3035~12100 | 3035~15200 | 3035~18200 | ||||
| Processing amount (kg/h)( moisture reduction rate of 25% to 14.5%) | ≥600 | ≥800 | ≥900 | ||||
| Overall size | Overall length | 3577 | 3577 | 3577 | |||
| Overall width | 2973 | 2973 | 2973 | ||||
| Overall height | 9315 | 10405 | 11495 | ||||
| Heating mode | Direct/Indirect | ||||||
| Burner | Type | Double fire control,and double throttle automatic adjustment | |||||
| Lgnition mode | High voltage autoigtion | ||||||
| Fuel type | Natural gas~liquefied gas | ||||||
| Fuel consumption(kg/h) | 8Nm³/h | ||||||
| Total power(kW) | 9.44 | ||||||
| Mating power | Three-phase 380V/50HZ | ||||||
| Applicable fuel type | Bio-particles, rice husk, natural, gas, liquefied gas, diesel, electric power ,etc | ||||||
| Performances | Feeding time: rice/wheat(min) | 40~50/35~45 | 50~60/40~50 | 55~65/50~60 | |||
| Discharging time: rice/wheat(min) | 50~60/45~55 | 60~70/55~65 | 70~80/65~75 | ||||
| Hot air temperature(ºC) | 30~120 | ||||||
| Moisture reduction rate(%/h) | 0.5~1.2 | ||||||
| Drying capacity(t/h*%/h) | Rice≥6/ wheat≥7 | ||||||
| Unit heat consumption(KJ/kg. water | ≤5000 | ||||||
| Safety devices | Air pressure switch, hot Air temperature sensor, malfunction overheat switch, hot relay, breaker protector, full-load alarm | ||||||
