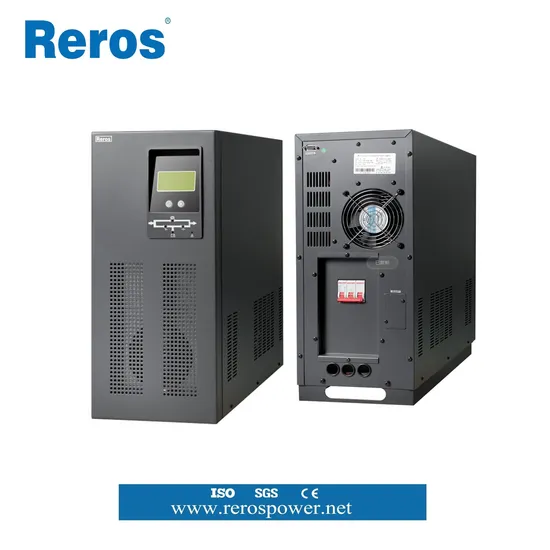

Single Phase Output on-Line Low Frequency Transformerbase 1-20kVA Industry UPS PF0.8/0.9

Product Description

B1kVA-20kVA Product introductionB1kVA-20kVA series is based on double conversion on-line intelligent UPS, is designed for industrial manufacture environment, is the real double conversion on-line high-performance power frequency sine wave UPS. Key components in redundancy design, adopt advanced industrial power device, superior performance of SPWM inverter and international advanced technology such as intelligent multi-mode battery management technology, and plenty of power management software, has been widely used in metallurgy, chemical industry, building material, glass, electronics, automobile and other fields.

Main feature
1.IGBT inverter and output isolation transformer
2.Online double conversion
3.Wide input voltage range
4.RS232 communication port
5.SNMP +USB+dry contact(optional)
6.High reliability and performance
7.External battery pack (optional)
Application
1.Data center
2.Industry
3.Commercial facility
4.Telecom system
5.Precision instrument
Specification

Model	B1K S/L	B2K S/L	B3K S/L		B4K S/L	B6K S/L	B10K S/L	B15K	B20K
Capacity	1KVA	2KVA	3KVA		4KVA	6KVA	10KVA	15KVA	20KVA
Input features
Input voltage(Vac)	165~275
Frequency(HZ)	45~66 Automatically select synchronization range according to grid frequency
Phase	Single phase three wires
Battery voltage(Vdc)	48	96	96/192		192
Battery type	4*7Ah 12V/External	8*7Ah 12V/External	8/16*7Ah 12V/External		16*7Ah 12V/External			External
Output features
Power factor	0.8/0.9
Voltage(V)	220/230/240±1%
Frequency(HZ)	50/60±0.5%(Free oscillation)
Transfer Time(ms)	0
Waveform	Sine Wave,THD<3%
Overload Capacity	110%~129% full load keep 10min;130%~150% load keep 60s;
Others
Crest Factor	>3:1
Parallel function	No			Yes(optional)
Backup time	Standard time is 10min/ Long backup time can be extended freely
Charge recovery time	<10hours
Communication	RS232(USB/dry contact are optional)
SNMP(Optional)	Can be network monitored by SNMP adapter
Display	LED display work status and fault indicator;LCD display single phase input voltage, input frequency, single phase output voltage, load, battery voltage etc
Noise (dB)	<60(within 1 meter)
Alarm	Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Protection	Input over-voltage protection, battery under voltage protection, overload protection, short circuit protection, over temperature protection
Working temperature(ºC)	0~40
Humidity	0~95%,No Condensing
Size(D×W×H) (mm)	590*230*717(S)/590*230*540(L)						596*305*1065/890		700*405*955
Weight(KG)	80/50	99/60	107 /52		113 /58	115 /60	160 /116	127	195

Note:
"L" is long backup UPS,"S" is standard UPS;
Because the products are continuously improved, please contact the company or dealer to inquiry the latest specification.

FAQ
1)What is your minimum order quantity?
A: For common specification, there is no minimum order quantity, and one piece could also be supplied. The difference is just the price and schedule. If your request is some special, we need to calculate it accordingly.
2)Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept.
3)What is the Terms of Payment?
A: T/T, L/C, D/P, D/A, Western Union, Paypal and MoneyGram (for Small-amount payment).
4)Can you offer Form A or Form E or C/O?
A: Yes, it's no problem, we could apply it from our local government.
5)What's the warranty condition for your UPS?
A: 1 year warranty after the shipment of boarding date, and 1% single phase of UPS amount by free Spare Parts shipped together with each order shipment;
6)How is your delivery time?
A: It depends on your order quantity and specification, usually about 7~20days, and it won't cost more than 35days
7)What are the advantages of your company?
A: Reros has about 30 years manufacturing experience, and more than 20 years exporting experience. We promise your quality and service all the time. Adequate inventory, and supply guarantee for the subsequent renewal of supply, providing different solutions.
