Woodworking Four Sided Planer Wood Four Sided Planer Thicknesser with CE Approved Hot Sale

Product Description

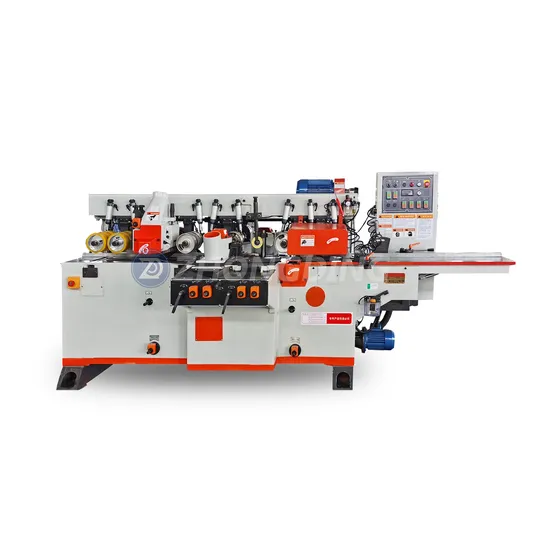

FOUR SIDE PLANER THICKNESSER
Control panel: Easy to operate and adjustment.
Long feeding table at the entrance covered with chrome.
Individual motor to each spindle to ensure maximm cutting.
Pneumatic hold-down feeding wheel can adjust the pressure in sections, which is beneficial to the smooth feeding of wood with different thickness.
The unique powerful feeding system is more conducive to the synchronous feeding of the upper and lower feeding wheel group, so as to maintain the smooth feeding of the processing process.
Equipped with shaft cooling function , it can increasing the life of saw blades and ensure the precision of cutting. #Suction inlet: Lateral protection safety device, equipped with central vacuuming, effective discharge of sawdust keep working environment clean.

Specification:

Model	MB4015	MB4023	MB6023
Working width	20-150mm	20-230mm	20-230mm
Working thickness	8-100mm	8-125mm	10-125mm
Feeding speed	5-30m/min	5-20m/min	5-20m/min
Feeding power	2.2kw	2.2kw	3kw
Lower horizontal shaft power	3kw	4kw	4~5.5kw
Upper horizontal shaft power	4kw	7.5kw	7.5~5.5kw
Max. Blade mounting dia.		120mm bottom 1, 140/rest, 140/base 1, 140/base 2, 140/rest	120mm bottom 1, 140/rest, 140/base 1, 140/base 2, 140/rest
Left and right vertical shafts power	3kw~3kw	5.5~5.5kw	5.5~5.5kw
Beam lifting power	0.37kw	0.75kw	0.75kw
Air pressure	0.3-0.4Mpa	0.3-0.4Mpa	0.3-0.4Mpa
Total power	15.57kw	25.45kw	37.25kw
Overall dimension		3100*1600*1600mm	3600*1600*1600mm
Weight	1300kg	2500kgs	3400kg

TOP RATED
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES
CERTIFICATE

PAYMENT AND LOGISTICS
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.
