2ply Corrugated Carton Production Line
| US$200,000.00-300,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YK-2Ply-1800-150
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Paper
Paper Thickness
Corrugated Cardboard
Type
Corrugated Paper Making Machine
Application
2ply Corrugated Cardboard
Place of Origin
Dongguang, Hebei
Width
1800/2000/2200mm
Speed
150/200/250m/Min
Flute Type
a,B,C,E,F Flutes
Machinery Test
Yes Provide
After Warranty Service
Video Technical Support, Zoom Meeting Online
Other Service
Spare Parts Support
Voltage
380/415/440V
Single Facer Type
320e Cassette Type Single Facer
Transport Package
Plastic Film
Specification
YK-2ply-1800-150
Trademark
YIKE Group
Origin
China
HS Code
84413090
Production Capacity
50sets/Month
Product Description

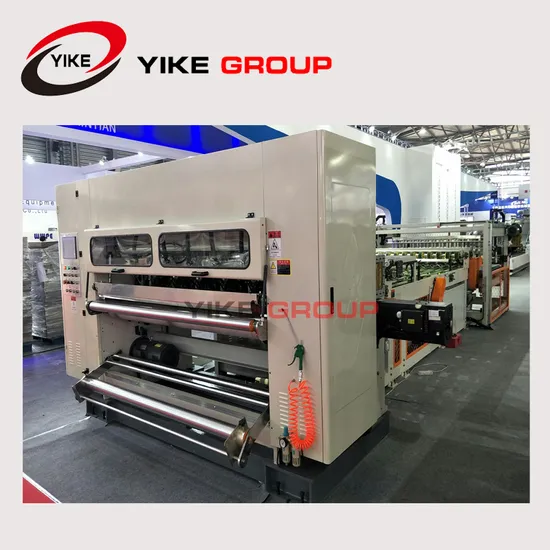

Corrugated Paper Making Machine 2Ply Corrugated Carton Production Line
YK-150-1800 2 Ply Corrugated Cardboard Production Line
| Specification | Equipment name | UNIT | QTY | Unit price | Remark |
| ZJ-V5B | Hydraulic shaftless mill roll stand | a | 2 | 11,500 | The spindle¢240mm, hyperbola heavy rocker, toothed chuck,multi-disc ventilated disc brakes, hydraulic drive lift, left and right translation, for medium. Rail length 6000mm, trolley used 10mm plate welding. |
| Paper trolley | a | 4 | |||
| RG-1-900 | Preheater | a | 2 | 6,500 | Roller¢900mm, including certificate of the pressure vessel. Electromotion adjustment angle. |
| SF-320E | Cassette type single facer B FLUTES | a | 1 | 89,000 | Corrugated roller ¢ 320mm, Tungsten carbide coating, electric trailer 10-minute rapid change of tile roller, energy-efficient synchronous belt rotation, maintenance-free airbag pressurization, independent coating unit, PLC automatic control plastic, man-machine interface touch screen, Paper automatic parking pressure relief. |
| MK-320 | Corrugated Roll Quick Change Modules C/G/F FLUES | a | 3 | 26,000 | Corrugated roller diameter:320mm,tungsten carbide dealing,Modules section comprises:Both ends of the shaft seat,bearing,steam element,suction box,pneumatic components assembly. |
| DY-C | Electric hydraulic quickly change trolley | a | 1 | 6,800 | Large capacity battery, power walking, hydraulic lift, centralized control. |
| ZDF | Conveyor bridge | set | 1 | 5,200 | Independent frequency motor drive lifting, transmission. The main beam is connected with the 20th channel, 16-beam, No. 63 angles, columns, etc. Both sides of the security fence, the word pedals, ladders. |
| DHE-150 | Single corrugated the aspect Cutter(Spiral knife Crosscutting, NC thin knife slitting, down stacking ) | a | 1 | 84,600 | AC servo control spiral knife structure, Touch screen display. Collect paper machine adopting a classification adjustable count output cardboard, The maximum length of stacked is 1.3 meters. pull paper feed and the transverse motor is all frequency speed control, NC thin knife slitting 5 group blades. Spiral knife Crosscutting. |
| Total price: USD299,600 EXW Factory Discount Offer: Please contact Grace to get a good price. Payment: 30% T/T in advance, balance paid before shipment Delivery Time: Within 5-8 month | |||||
