Stranded Copper Conductor Fire Alarm Electronic Cable

Product Description

Production Description
The fire survival cables range features a variety of cables and wires designed to withstand extreme heat. the range of products includes flame retardant cables, low smoke halogen-free(LSHF or name LSZF) cables and wire, and fire resistant cable. Flame retardant cables help prevent the spread of fire while fire resitant cables are able to continue supplying power to emergency circuits during fire. LSHF cables are slow to catch fire and they burn slowly with low amount of smoke and toxic halogen gases, making it easier for people to escape in the event of a fire.
Specifications

Cable	Nos. of Croes & Section (AWG)	Rated Voltage U0/U	Conductor structure(AWG)	Conductor Resistance at 20°C (Ω/KM)max	Number of Cores	Binding Tape	Overall diameter (mm) min max	Sheath material type
LLT-FR001	2C*24AWG+AL+E	300/300	1/0.511	93.8	2	Al Tape	3.6	PVC
LLT-FR002	2C*20AWG+AL+E	300/300	1/0.813	36.4	2	Al Tape	4.6	PVC
LLT-FR003	2C*18AWG+AL+E	300/300	1/1.02	21.4	2	Al Tape	4.9	PVC
LLT-FR011	3C*16AWG+AL+E	300/300	1/1.29	13.5	3	Al Tape	5.8	PVC
LLT-FR012	3C*14AWG+AL+E	300/300	1/1.63	8.45	3	Al Tape	6.7	PVC
LLT-FR013	3C*12AWG+AL+E	300/300	1/2.05	5.31	3	Al Tape	7.6	PVC
LLT-FR019	4C*14AWG+AL+E	300/300	1/1.63	8.45	4	Al Tape	7.4	PVC
LLT-FR020	4C*12AWG+AL+E	300/300	1/2.05	5.31	4	Al Tape	8.5	PVC
LLT-FR021	4C*10AWG+AL+E	300/300	1/2.59	3.34	4	Al Tape	10.0	PVC
......

Production Feacture
LLT shielded/unshilded fire alarm cable power limited fire alarm cable describes one pair (2 Cores). The maximum operating voltage is 300/300V, the flame retardant is in according with UL 1685, UL 1666.
ANSI/UL 1424, Cables for Power-Limited Fire-Alarm Circuits
UL 1685 Type FPL, UL 1666 Type FPLR
UL Listed File No. E502147
RoHS Compliance
Application
1.Fire Alarm System
2.Sprinkler System
3.Smoke Detector
4. Critical Central Fire Systems
5. Signalling System
6. Manual Call Point
7. Foam System
Certifications
Packing & Delivery

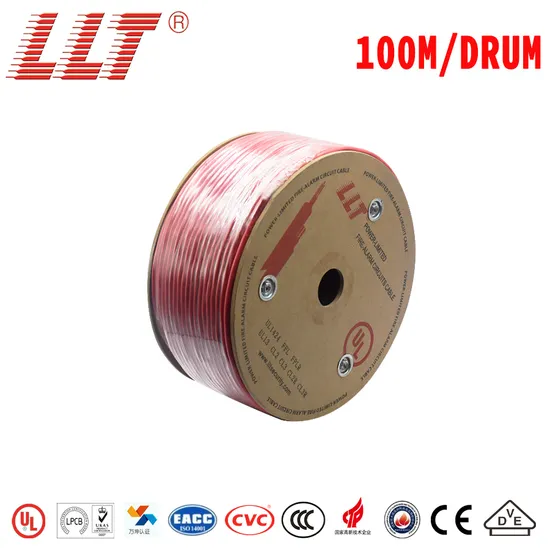

***100 Meter/Coil, 100 Meter/Paper reel, 100 Meter/plastic reel, 500 Meter/Wooden drum, Carton & Pallet
