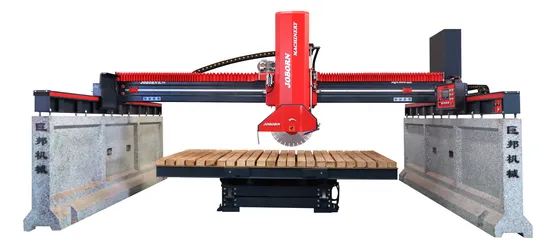

Joborn Sqc600-4D Luxury Stone Cutting Machine Italy
| US$17,500.00-22,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SQC600-4D
Usage
Ceramics, Granite, Marble
Application
Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
ISO, CE
Date of Delivery
Within 20 Days
Max. Blade Diameter
450mm
Min. blade Diameter
350mm
Max.Proceing Height
100mm
Worktable Size
3200*2000
Main Motor Power
15kw
Main Motor Brand
Xaimen Eagle
Transport Package
Simple Packing
Trademark
Joborn
Origin
China
HS Code
8464109000
Production Capacity
420 Sets/ Year
Product Description
Product DescriptionThis machine adopts microcomputer control system and human-machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, combination of chrome-plated guide pinand wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost;worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable. Main parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit specially cutting granite and marblewith high value and big size.
| Appellation | Unit | SQC450-4D | SQC600-4D | SQC700-4D |
| Max. Disc Diameter | mm | Φ450 | Φ600 | Φ700 |
| Max. Lifting Stroke | mm | 220 | 350 | 470 |
| Worktable Size | mm | 3200*2000 | ||
| Worktable Rotation Range(Optional) | ° | 0°,90°,0°~360°(Each 45° locating) | ||
| Worktable Turn-over Degree | ° | 85° | ||
| Max. Processing Height | mm | 100 | 180 | 230 |
| Water Consumption | m³/h | 3 | ||
| Power Of Main Motor | kW | 15 | 18.5 | 22 |
| Total Motor | kW | 21 | 24.5 | 28 |
| Dimension(L*W*H) | mm | 6000*4800*3000 | 6000*4800*3200 | 6000*4800*3400 |
| Weight | kg | 5700 | 5800 | 5900 |
