Dl-500 Automatic Nonwoven Vacuum Cleaner Dust Bag Cutting Making Machine with One Color Printing System

Product Description

Product Description

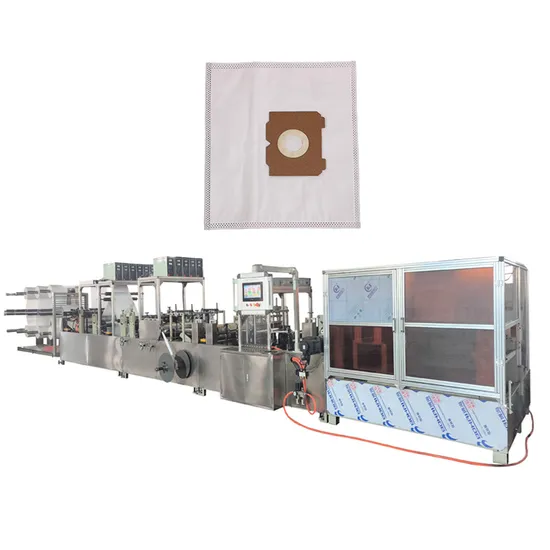

DL-500 Automatic Nonwoven Vacuum Cleaner Dust Bag Cutting Making Machine With One Color Printing System

Condition	New
Machine Type	Bag Forming Machine
Bag Type	Filter Bag
Material	Non Woven
Computerized	Yes
Place of Origin	Jiangxi, China
Brand Name	Dele
Electrical Source	380V 50Hz
Warranty	1 Year
Key Selling Points	Easy to Operate
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, PLC
Max Speed	10-15 m/min (According to the material and bag's size)
Machine Type	Air Filter Bag Making Machine
Dimension	11500*1800*2200mm
Weight	5500kg
Application	Air filter bag, Vacuum cleaner dust bag
Bag Width	Customized
After-sales Service Provided	Yes
Suitable Material	Non-woven
Feature	Automatic

1.The nonwoven air filter bag making machine produces air filtration bags with punched hole and promises the neat cutting, strong conglutination. 2.It is equipped with 4-10 sets of automatic loading devices on the feeding part of the machine. 3.It is equipped with one set of folding and forming device designed by our innovation team which makes the forming of the products stable and adjusts the size of the products freely. 4.Our dust collecting pocket production line makes the different sizes of the bags according the client's need and is controlled by micro computer. 5.It is equipped with 4 sets of ultrasonic generators, it uses good alumina rollers to transfer the raw material with the help of the synchronous tension controlling systems. 6.All the moulds are made from the good quality steels, the flower patterns of embossing systems are plated through the special Techniques, The main electric motors adopt frequency converters to control the speed of the machine. 7.It is equipped with electronic touch screens which control the operation program, photocell tracking, ultrasonic conglutination, special cutting, all the work is done automatically. 8.It fills the domestic market gaps of automatic non woven fabric air filtration bags with advanced innovation idea, good mechanical material, reasonable layout of the electric wires and aesthetic in appearance.
FAQ:1.You are a trade company or factory?
We are a Manufacturer and trade company.
2.Does one machine can only produce one size?
Not exactly, it depends on the machine.
3. How to visit your company?
Our company located at Dexing City Jiangxi Province ,We can pick you up from Nanchang airport. Or railway station Shangrao station.
4. What can you do if the machine is broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5.Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6.Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
7. Why should we choose your company?
>Certified company with CE certificates.
>Various production line, covering more than 30different kinds of professional machinery to produce Nonwoven Fabric.
>Advanced technical support and strict quality management system.
>High-efficiency and timely service by E-mail, Whatsapp,Facebook,etc.
