Eiboard SKD Office Display Classroom Electronic Price Zero Bonding Screen School Digital Flat Panel Smart Interactive Whiteboard Pizarra Inteligente 8K
Basic Info.
Model NO.
FC-65LED
Communication Mode
Wireless
Compatibility
Android, Windows
Display Size
110inch
Microphone Type
Built-in microphone
Recording Feature
Built-in Recording
Remote Control
Infrared Remote
Video Quality
Ultra High Definition (UHD)
Glass Type
4mm Tempered Anti-Glare Glass
Voltage
110-240V(AC) 50/60Hz
Screen
UHD (4K) LED Touch Panel with Anti-Glare
Whiteboard Type
Interactive Whiteboard
Resolution
UHD 4K 3840*2160 Resolution
Products Name
Pizarras Interactiva
Touch Points
20 Points Infrared Multi-Touch
Application
Educaiton, Training, Conference
Writing Tools
Finger, Pointer, Pen, Chalk, Marker
Operating System
Dual System: Android and Windows
Android
RAM 4G, ROM 32g
Writing
Writing Whiteboard with Shortcuts
OPS
Intel I5/I7, RAM 8g/16g/32g, Storage 256g/512g/1tb
Backlight Lifetime
50000 Hours
Viewing Angle
178°
Transport Package
Cardboard Cartons Outside with Foam Inside
Specification
65-120inch or Customized
Trademark
EIBOARD
Origin
Guangdong China
HS Code
8471414000
Production Capacity
10000/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
100.000kg
Product Description

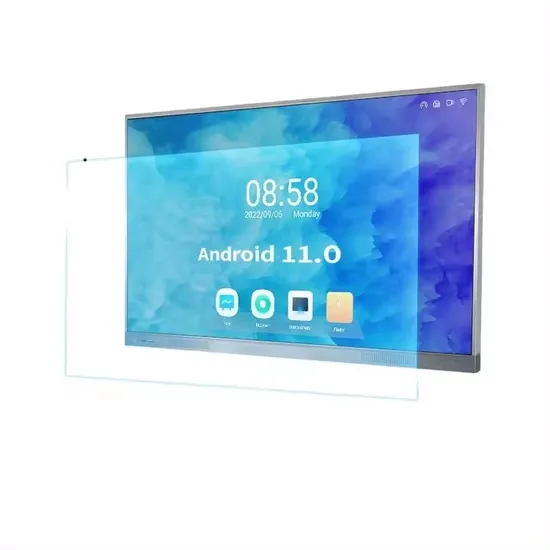

Product Description The LED Interactive Touch Screen is a smart interactive whiteboard that is highly intelligent and used extensively in education and conferences. It features a three-sided ultra-narrow border design, sliding door lock protection, and a 4K ultra-high-definition display screen. With its human-machine interaction mode and interactive whiteboard and wireless projection software , it enables a multi-user and interconnected interactive teaching mode, enhancing classroom learning and creating a more engaging learning environment .Product Dimension
| Items / Model No. | FC-65LED | FC-75LED | FC-86LED | FC-98LED |
| Packing dimension | 1620* 1054*200mm | 1845* 1190*200mm | 2110* 1375*200mm | 2315* 1460*200mm |
| Product dimension | 1490*894*95mm | 1710* 1018*95mm | 1957* 1158*95mm | 2206* 1303*116.7mm |
| Wall mount VESA | 500*400mm | 600*400mm | 750*400mm | 750*400mm |
| Weight(N.W/G.W) | 41kg/52kg | 56kg/67kg | 71kg/82kg | 86Kg/98Kg |
| * Panel System | ² Dual system structure: Android and Windows system. ² With fast switching between dual systems. ² Built-in Android 13.0 system, with high performance CPU CortexA55, 4 cores, 1.9Ghz; ² Android system 15 languages: Chinese, Traditional Chinese, English, Portuguese, Korean, Japanese, Italian, Russian, French, German, Spanish, Arabic, Thai, Vietnamese, Polish. |
| *Unique structure | ² The front sliding lockable design on front bezel can better protect the equipment. ² It's with 4mm physical tempered anti-riot/anti-glare glass, safe and eye-protecting. ² Infrared touch sensors are embedded in the frames, with waterproof and dust-proof design. |
| *Featured functions | ² Widely used for education, conference and training; ² It Support 20 points touch, 10 people can write at the same time. ² There are 4 physical buttons, support one-key to quick start-up: One-click for Energy saving, Casting screen, Recording screen and Anti-blue light. ² With 3-in-1 switch on/off design: One button can be with functions of Power-On/Off, Energy Saving/Wake-up, PC On/Off. ² 3-finger to call the switch button quickly from any area. ² 5-finger to standby and wake-up screen quickly. ² 5-finger gesture to auto-identify writing and eraser. ² Network support: wired network and wireless WIFI, 2.4G +5G, Bluetooth 5.0. ² Support multiple signal source selection, sleep timing, and shutdown memory channel. ² Support automatic identification of signal sources and switching channels. ² Support TV remote function, child lock, U-disk lock, App lock. ² Support U-disk follow, automatic identification and classification of U disk content. ² 4K UI takes better eye-sight display effects. | |
| * Practical software | ² QR code scan & share, ² Screen share (4 split;Phone & PC), ² Voting, ² Screen recorder, ² Fast file transfer, ² Scroll down half screen, ² Thick & Thin pen switch, ² Hardware self-check, | ² Full-channel annotation and screen capture, ² The dual-screen split for different apps operation. ² 4K Whiteboard software, support: * to insert table and multi-graph * to automatic recognize written characters and graphics; * to insert multiple media files and other sources; * to write and erase in 4 split screens . ² File management, Office, Browser etc... |
| Item Name | LED Interactive Touch Screen | |||
LED Panel | LED Panel | 65" | 75" | 86" |
| Screen Type | LED | |||
| Resolution | 3840( H)×2160(V) (UHD) | |||
| Color | 10 bit 1.07B | |||
| Active Size | 1428.48*803.52mm | 1649.66*927.93mm | 1895.04*1065.96mm | |
| Dot Pitch(H*W) | 0.372*0.372 | 0.4296*0.4296 | 0.4935*0.4935 | |
| Brightness | >350cd/m2 | |||
| Contrast | 4000:1 (according to panel brand) | |||
| Viewing Angle | 178° | |||
| Display Protection | Tempered explosion-proof glass 4 mm | |||
| Backlight Lifetime | 50000 hours | |||
| Electrical performance | Max Power | ≤250W | ≤300W | ≤400W |
| Standby Power | ≤0.5W | |||
| Voltage | 110-240V(AC) 50/60Hz | |||
Operating System (Dual OS available) | Built In Android System | Android 13.0 | ||
| CPU: Cortex-A55 *4, Quad-Core, 1.9GHz | ||||
| GPU: ARM Mali-G52 MP2 | ||||
| RAM 4GB ; ROM 32G | ||||
| Network : LAN/WIFI 2.4G+5G | ||||
| Bluetooth5.0 included | ||||
Windows System (Optional OPS PC) | CPU: I5-4th Generation (I3/I5/ I5 as optional) | |
| Storage: 4G; 128GSSD (4/8/ 16G +128/256/512/1T G as optional) | ||
| Intel integrated HD graphics | ||
| WIFI: 802.11b/g/ n | ||
| Windows: Pre-install Win 10 Pro | ||
Touch | Touch Technology | IR touch; 20 points; HIB Free drive |
| Touch Items | Pen, finger, any opaque objects | |
| Response Speed | ≤ 8ms | |
| Operation System | Support Windows7/10, Android, Mac OS, Linux | |
| Speakers | Power | 15W*2 / 8Ω |
I/O Ports | Input Ports (Rear) | HDMI*1, LAN(RJ45)* 1 , AV in(mini)*2 |
| Output Ports(Rear) | SPDIF* 1, Earphone*1, AV OUT(mini) | |
| Other Ports(Rear) | USB 3.0* 1, USB2.0* 1, RS232*1 , Touch USB* 1, OPS Slots*1 | |
| Front Ports | USB*3( Full function), HDMI in*1, Touch USB* 1, Type-C* 1 | |
| OPS Ports (Optional) | USB2.0, USB3.0, VGA, HDMI-out, RJ45,WIFI,AUDIO OUT, MIC, POWER | |
| Function Buttons | 8 buttons on front bezel: Power/Eco, Source, Menu, Home, PC, Anti blue light, Screen record, Screen share | |
| Working Environment | Working temperature | 0ºC-40ºC |
| Storage temperature | - 20ºC~60ºC | |
| Working humidity | 10%-90% non-condensing | |
| Accessories | Power cable *1 pcs; Remote Controller*1 pcs; Touch Pen*1 pcs; QC card*1 pcs ; Warranty card*1 pcs; Wall mount brackets*1 pcs; | |
