High Quality Wood Engraving Machine CNC, Woodworking CNC Router with 4th Axis Rotary Device for Sale in UK

Product Description

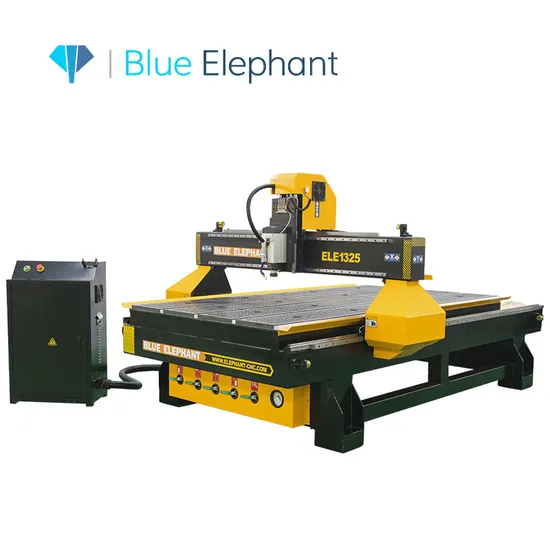

1325 4 axis woodworking engraving machine
Product Description
Features
1) Designed with rotary device, it can process the cylinder wood carving patterns, furniture legs, escalators, etc..
2) With the heavy duty thicker and bigger welded steel tube frame, it makes the machine work more stably.
3) Adopting DSPB18 control system and servo motor driver system, which ensure the machine with a longer service life.


Product Parameters
Technical parameters

Description	Parameter
Lubrication system	Manual Lubrication System
X,Y,Z Working Area	1300x2500x200mm (optional)
Structure	Heavy duty thicker and bigger welded steel frame structure
Working voltage	380V/3PH/50Hz
Table Surface	T-slot and vacuum working table
Spindle	CS 4.5 kw water cooling spindle,24000RPM
Spindle speed	0-18000rpm
X, Y Structure	PMI #20 linear square guide way for X,Y,Z axis
Z Structure	Taiwan TBI ball screw for Z travel
Motor and driver	Chinese leadshine easy servo 750W
Inverter	Taiwan 5.5 KW Fuling inverter
Dust Collector	Dust collector with 2 pockets
Control System	DSPB18 4axis control system
Rotary device	Rotary device for 200mm diameter

PS: All the working area and specifications can be customized according to your requests.
Sample & Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.

Packaging & Shipping
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.

Company Profile

Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
