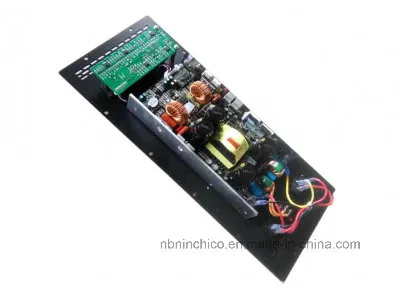

Digital Power Amplifier Module for Subwoofer PDA1000-Sub
| US$95.50 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
PDA1000-SUB
Used For
Professional
Tube Type
Tube Amplifier
Function
Post Amplifier, Pre-amplifier
Sound Channel
5.1
Output Number
4
Voltage
AC 220V
Element Number
Monoamplifier
Conductive Mode
D
Parameter1
Btl 1 Channel
Parameter2
8 Ohms
Parameter3
1000W
Frequency Response(8ohms)
20Hz-20kHz,+/-1.5dB
Bridged Harmonic Distortion
20Hz-20kHz <0.05%
Conversion Rate
90V/Us
Gain
80dB
Damping Facotor
>100 (8ohms, 20Hz-20kHz)
Maximum Gain (1.2V Setting)
39.1dB
Input Impedance
20kohm Balanced/10kohms Unbalanced
Transport Package
Standard Export Carton
Specification
subwoofer module
Trademark
OEM ODM
Origin
China
HS Code
8466930000
Production Capacity
50, 000PCS/Month
Product Description
| SPECIFICATION | PDA1000-SUB |
| Bridged 8 output power | 1000W |
| Total harmonic distortion (20Hz-20KHz) | <0.05% |
| Conversion rate | 90V/us |
| gain | 80dB |
| Circuit type | Class D digital amplifier |
| Signal-to-noise ratio | >95dB |
| Degree of separation (20Hz-20KHz) | >90dB |
| frequency response | 20Hz-20KHz+1.5dB |
| Damping factor (8, 20Hz-20KHz) | > 100 |
| Input sensitivity (8) | -2.2dB/0dB/+3dB |
| Input impedance | 20KΩ balance / 10KΩ unbalance |
| Cooling method | Natural cooling |
| AC110V-220V / 50-60Hz | |
| Protection function | Short circuit protection, temperature protection, overload protection, overvoltage protection, soft start protection, high frequency protection, DC protection |
