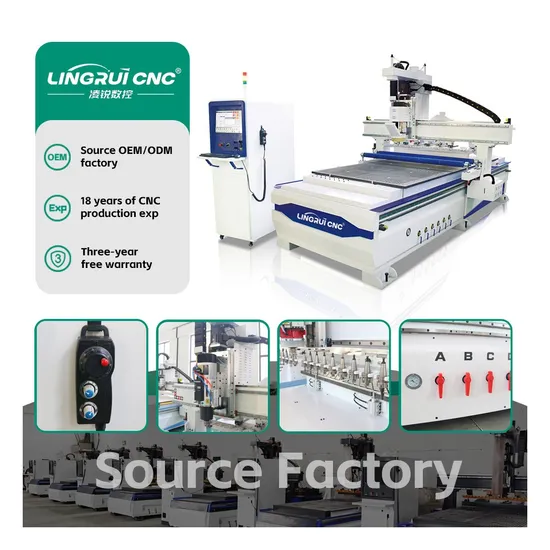

Carpentry Equipment 1212 Atc 220V Single Phase CNC Machine for Wood and Stone Large 3 Axis CNC Router Machine Sculpt 3D 7 Axis

Product Description

Product Description
Advantages of the new Inline tool change automatic CNC router: 1. It adopts HQD9/11KW high-speed air-cooled tool-changing spindle, which can automatically switch between 8/12/16 to meet the needs of diversified processing products and greatly improve the processing efficiency.
2. LNC CNC router special control system, equipped with industrial machine display screen, can run in the most stringent environment.
3. It uses double-rod pressure rollers, the height of which can be adjusted at will. When used with a vacuum adsorption table, it can achieve 0 movement of the plate. 4.Integrated gantry, better rigidity, smoother operation and higher machine precision. 5. Optional fully automatic feeding platform to increase production speed.
Detailed Photos
High-speed automatic tool-changing
High-power,high-speed automatic tool-changing spindle saves tool-changing time and improves efficiency
Inline tool change magazine
Place the tool you need to use in the knife library during processing. Settings can automatically switch the tools required for each process of each process of processing the workpiece. A plate material can be completed in a complete processing of a board in one operation. There is no need to manually change the knife.
Control System LNC
LNC CNC router special control system, equipped with industrial machine display screen, can run in the most stringent environment.
Vacuum adsorption platform
Use 6 partitions, 24 vacuum vacuum adsorption platforms, with 11kW high -power water -cold vacuum pump, the machine comes with a negative pressure meter, each position can be controlled independently.
Servo Motor
The machine uses a full servo motor to drive. The XYZ three -axis driver uses a high -precision TBI roller screw connection. It is driven by a closed -loop drive. With the silver guide rail/slider, it can achieve mute operation.
Taiwan Hiwin Guide rail/slider
TBI high -precision roller screw,High -precision oblique teeth shift - Precision 0.01mm,The speed can reach 28000mm/m - Fully automatic lubrication.

Product Parameters

XYZ working stroke/processing size	1300*2500*200mm
Bracket	Thickened brackets, steel beams
Bed frame	Machining center processing bed (heavy-duty bed)
Spindle power	Changsheng HQD 9KW high-power and air-cooled tool change spindle
Drive mode	DORNA 1.5KW servo motor drive (Z-axis brake motor)
Spindle speed	6000-24000r/m
Mesa	Vacuum suction table with 6 partitions and 24 well positions
Transmission mode	XY axis high-precision ground helical gear transmission + Z-axis high-precision TBI screw transmission
Slideway	Taiwan HIWIN high precision 30 linear square rail
Device cable	pure copper cable
Vacuuming way	3KW double barrel vacuum cleaner
Vacuum pump	7.5KW water-cooled vacuum pump
Control system	Taiwan Baoyuan Control System
Lubrication system	Oil filling and maintenance system
Working voltage	AC380V/50/60HZ
Engraving instructions	Standard G code, u00, mmg, plt
Position	4+2 positioning cylinder
Push material	Pushing cylinder device
Security system	All photoelectric limits of XYZ three-axis
Locating Accuracy	0.02mm
Max woking speed	18000mm/min
Tool magazine	8/12/16 inline tool magazine
Machine weight	2600KG
Reducer	Japan Xinbao reducer

Packaging & Shipping
We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates.
If you need it, our engineers can provide technical support on-site in your country.
Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Company Profile
Certifications
FAQ
1. Are you a factory or a trading company?
We are a factory with an export license.
2. Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4. How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5. Do you have installation and equipment debugging services?
Yes,we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
7. What are the payment methods?
There are two payment methods.
(1)T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
