Xkg27 CNC High Speed Gantry Type Milling Machine with Fixed Crossrail

Product Description

Product Description
APPLICATION

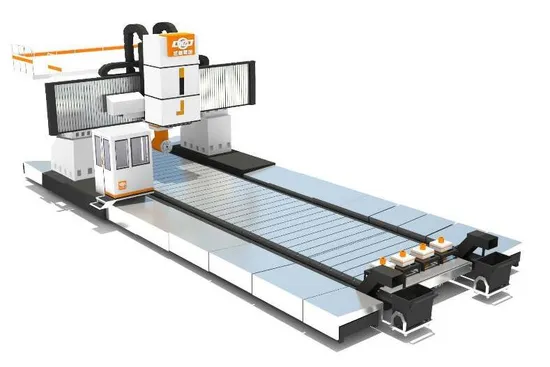

XKG27 series CNC Gantry Movable Boring and Milling Machine with Fixed Crossrail is independently developed by wz, with outstanding performance.
The machine is widely applied in rough and finish machining of big and middle base parts, auto parts and plane structure, complex parts. lt can carry out machining of flat surface, holes, inclined faces, inclined holes, curve faces and small faced plane of body components. The machine possesses milling, boring, drilling, reaming and tapping functions. Equipped with attachments, it can complete machining of five faces by single set up. CNC system can realize 3-axis simultaneous control for contour milling.
The main performance characteristics:
The hydraulic balance device is adopted to balance the weight of ram to ensure stable movement. The guideway and ballscrews are of good accuracy and stable performance. The attachment like spindle head, right angle milling head and universal head, adopts quick release coupling to realize automatic connection with ram and automatic change through 4 hydraulic oil cylinders of C axis at the bottom of ram, with a great repeatability. The indexing of C axis is controlled by spindle motor for indexing, angle encoder for measuring and high accuracy Hirth coupling for positioning (the positioning accuracy can reach ±3 seconds.) which can realized automatic indexing(1°~1°) of each attachment head. The automatic milling head change system is obtained through quick change couplings and plugs between end faces and C axis. It is possible to perform the connection of air, liquid and power circuits as well as inner and external tool cooling functions. The spindle has the function of automatic tool clamping, thanks to hydraulic cylinder located in the main transmission box or in the milling head attachment. With tool magazine, it can change tool automatically. X,Y,Z axes adopt large size section guideway to ensure rigidity and stability. The latest Siemens CNC system is adopted. The spindle motor adopts Siemens A.C. spindle motor and each feed axis adopts Siemens. A.C. servo motor. Optical scale is used for closed-loop control. Product Parameters

Item	Unit	XKG2720	XKG2725	XKG2730	XKG2735	XKG2740	XKG2745	XKG2750
Table width	mm	2000	2500	3000	3500	4000	4500	5000
Table length	m	4-30	4-30	6-30	8-30	8-30	8-30	8-30
Loading capacity of table per unit	t/m2	5					10
Distance between columns	mm	3000	3500	4300	4800	5300	5800	6300
Max. distance from spindle end to table surface	mm	1250/1500/1750		1500/1750/2000
Main motor power	KW	41		41			41/58
Ram vertical travel	mm	1000/1250/1500		1250/1500
Max. spindle speed	r/min	3000/4000		3000/4000			3000
Max. spindle rated torque	Nm	1250/1500/2000		1500/2000			2000/2500/3000

Detailed Photos
The machine is widely applied in rough and finish machining of big and middle base parts, auto parts and plane structure, complex parts. lt can carry out machining of flat surface, holes, inclined faces, inclined holes, curve faces and small faced plane of body components. The machine possesses milling, boring, drilling, reaming and tapping functions. Equipped with attachments, it can complete machining of five faces by single set up. CNC system can realize 3-axis simultaneous control for contour milling.
