Tissue Paper Machine High Income Low Investment Facial Paper Machine

Product Description

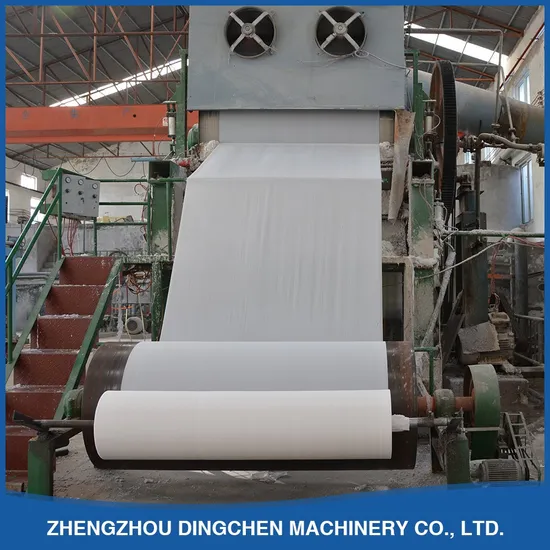

1092mm Crescent Type Toilet Tissue Paper Making Machine Product Description
Technical parameter: 1.Raw material:white paper cuttings or virgin pulp 2. Output paper:Toilet Tissue paper roll 3. Output paper weight: 12-25g/m2 4.Capacity: 25 tons per day(24hours) 5.Crepe ratio:20% 6. Net paper width: 2850mm 7. Drive way: Alternating current frequency converter speed control, sectional drive. 8.Layout type:left or right hand machine.

No.	Item	Function
Pulp Making Section
1	High Consistency Hydra-pulper	To break the waste paper or wood pulp into pulp and drop down the impurity and ink
2	High frequency vibrating screen	To separate and remove the small impurity(such as broken plastic tape,staples,etc) in the pulp through vibrating
3	High speed pulp washer	To whiten the pulp through bleaching
4	Pulp refiner	To grind pulp fiber
5	Low concentration pulp cleaner	To remove the sand and tiny impurity in the water and pulp
6	Pressure screen	To screening pulp fiber
7	Impeller	To stir the pulp and make sure the pulp and water mixed well
8	Pulp pump	To provide the pulp for the needed machine
Paper Making Section
9	Crescent type hydraulic headbox	Spray pulp fiber to forming wire evenly
10	Crescent former	To forming wet paper web
11	Dryer section part	To dry wet paper
12	Winding part	To reeling output paper be a jumbo paper roll
Boiler Section
13	Gas/diesel/coal boiler	To provide high temperature and pressure steam to dryer to dry paper

Pre-sales services: 1) Offering comprehensive technical and business consultation services;
2) Proposing the most suitable scheme and equipment for our clients;
3) Designing and fabricating targeted products according to the special requirements of clients;
4) Training periodically high qualified service technician.
5) Adopt all-around computer aided design (CAD) to design the whole production line.
6) Provide all-around turn-key projects as follows: production design,equipment manufacture, installation and adjustment, technical service,
7) Complete sets machine will be pre-installed and tested to confirm that the machine are in good condition before delivery.
8) On time delivery.

After-sales service:
1) Highly inspecting equipments in every working procedure, quality comes first;
2) Assisting our clients for foundation construction of equipments;
3) Dispatching engineers to install and debug equipments;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7) Providing technical exchanging;
8) Sending technicians to install and test the machine for you. They can also train your workers.
9) One year guarantee time after the machine run well;
10) Supplying you spare parts at a competitive price for a long time.
Company Information Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,
Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.

Packaging & Shipping
Our Services

FAQ

1, What kind of paper machines your factory produce?
We produce different kinds of paper machine. such as:
Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc.
Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and news printing paper etc.
Kraft paper machine which can produce Kraft paper, fluting paper, corrugated paper, Kraft liner paper, carton box paper and packing paper etc.
Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc.
2, Can you make paper mill design for us?
Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension; we will make your future paper mill design.
3, How about your machine's quality, we worry about the quality?
We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to ISO9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on ******. Our guarantee period is 1 year. If there have any quality problems, We will help you at any time.
4, What should I have to know if I want to get the quotation?
What kind of paper you want to produce(Important)
What kind of raw material you will use(Important)
The capacity you want produce per day(Important)
The paper weight you require.
The paper width you require.
5, Why your price is so high, is there any discount?
The price is matched with the quality of our machine. We can give you some discount if you want to buy our machine sincerely and earnestly. However, if you want a low quality paper machine. I tell you, we don't produce. Our company's principle is client first, reputation premier.
6, Could your engineer can teach and train our workers and stay in our factory for long time?
Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.
7, How long will it take to get the quotation?
We usually give reply within 24 hours after getting your inquiry. If you are urgent to get the quotation, please tell us by email, then we can reply you as the first priority.
