Double Shafts Paper/Paperboard/Paper Box/Cardboard/Carton/Waste Milling Machine

Product Description

Double Shafts Paper/Paperboard/Paper Box/Cardboard/Carton/Waste Milling Machine
Double shafts milling machine is through the cut, tear and squeezing, reaching to decrease the size of raw material.
The milling machine is widely used for paper, paperboard, paper box, cardboard, carton and other waste materials.
Characteristics of milling machine:
1. High production efficiency;
2. Mechanized feeding way;
3. High automation degree;
4. Reducing the labor intensity of workers;
5. Improving working environment.

Main application range:
1. Waste plastic bucket, plastic bottle, waste pipe, thin film, etc ;
2. Rubber, old tires, conveying belt, waste shoes, etc;
3. Old furniture, television, computer, wood, paper, cloth, leather, etc;
4. Steel, waste steel wire, color steel plate, paint buckets, cans, waste metal, etc;
5. Wood, waste wood pallet, plank, waste wood floor, wood packing case, etc.

The structure features:
Machine body, motor, reduction gears, six arris spindle, Moving Blade and bottom fix blade, frame, bearing housing and other major structures.

The working principle:
Spindle bearings on both sides of main shaft, through motor and reduction gear, rotary main shaft drives the spiral arrangement blades, make the blades on two shafts are meshing together, to tear, raw materials, and repeating this move to finished shredding. electronic control parts has a Reverse automatic control devices, when overfeeding or raw material is too big, Machine will inverted running and stop, avoid damage of blades or motor. To improve the service life and cutting ability, the main shaft through conditioning processing, and use high quality imported blades.

Product features:
1. The double shaft shredding machine adopts automatic control circuit, it has 4 control functions: start, stop, reverse and overload automatic inversion.
2. With a low speed, large torque and low noise.
3. The blade has many different materials: 9 Cr Si, SKD-11, 6cRw2Si, Cr12MoV, D2, W6, 55SiCr,
high hardness, good wear resistance, more choices.
4. The main shaft after heat treatment, increase the rated torque.
5. Split type bearing technology design, can quickly and efficiently to replace bearings, blade.
6. Spiral arrangement blades, increase the service life of the equipment.

Technical parameters:

	Model	Power(kw)	Capacity(kg/h)	Quatity of blades	Inlet size(mm)
Blades diameters Φ200*20	FM-500	7.5-11	400-600	20	800*600
	FM-600	7.5-11	500-800	22	800*600
	FM-800	11*2	600-1000	30	1000*800
	FM-100	15*2	700-1200	30	1200*800
Blades diameters Φ200*20	FM-800	15*2	800-1200	24	800*1200
	FM-1000	22*2	1000-1500	30	1000*1500
	FM-1200	22*2	1500-2000	36	1500*1800
	FM-1500	30*2	2000-2500	48	1500*2000
Blades diameters Φ400*40	FM-800	15*2	1000-1500	18	800*1200
	FM-1000	30*2	1500-2000	22	1000*1500
	FM-1200	45*2	2000-3000	28	1500*2000
	FM-1500	55*2	2500-3500	36	1500*2000

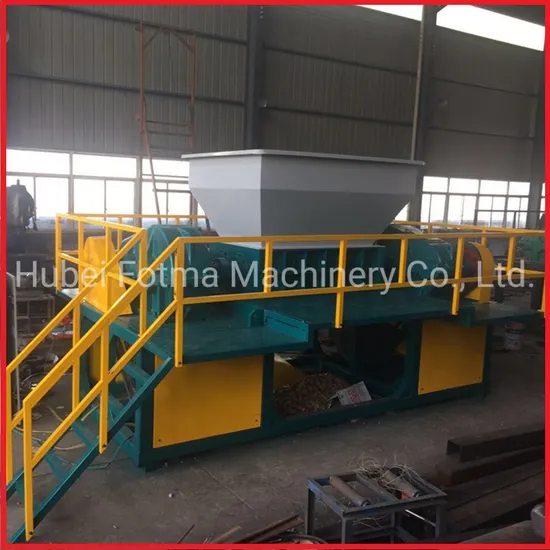

Photo:
