120A AC-AC Three-Phase SSR Relay Solid State Relay
| US$44.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SYTH12048ZA2
Phase
3
Electricity Type
Ac
Number of Pole
3
Load
High Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electronic Type
Size
Miniature
Type
Electric Parameter Relay
Load Voltage
24-480VAC
Control Voltage
70-280VAC
Certificate
ISO,CE,RoHS
Transport Package
Color Box + Carton
Specification
120A
Trademark
TRIHERO
Origin
China
HS Code
8536490000
Production Capacity
30000PCS/Month
Packaging & Delivery
Package Size
8.00cm * 6.00cm * 6.00cm
Package Gross Weight
0.400kg
Product Description
Introduction:Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.
3 phases AC to AC Solid State Relay(SSR)
Features:
* Dielectric strength up to 4000V
* Photo isolation
* Zero cross or random turn-on
* Panel mount
* AC control
* Built-in RC
* LED indicator
1) Specification(Rated current corresponding to Resistive load):
| Model | SYTH12048ZA2 |
| Load current | 120A |
| Load voltage | 480VAC |
| Control voltage | 70-280VAC |
| Control current | AC 12mA |
| On state voltage drop | ≤1.8VAC |
| On state leakage current | ≤10mA |
| Off state time | ≤10mS |
| Dielectric strength | 2500VAC |
| Insulation resistance | 1000MΩ500VDC |
| Ambient temperature | -30°c ~ 75°c |
| Mounting method | bolting |
| Indicator | LED |
| Weight | 380g |
2) Dimension & wiring:

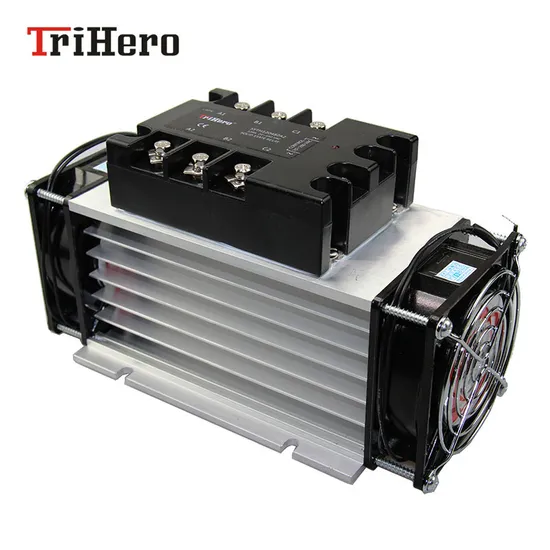

4) Matched heatsink:
