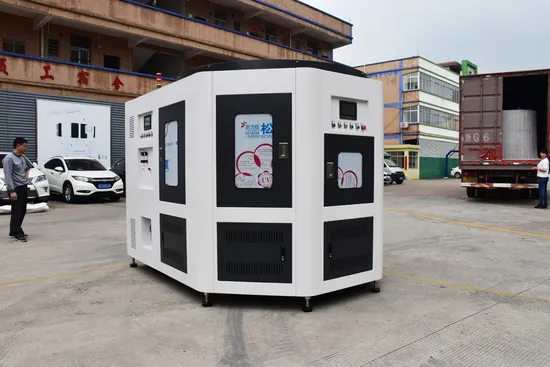

2 Color LED UV Cosmetic Bottle Screen Printer

Product Description

2 Color LED UV Cosmetic Bottle Screen Printer
Product Name: 2 Color LED UV Cosmetic Bottle Screen Printer
Model: CNC02
Applications:
2 Color LED UV Cosmetic Bottle Screen Printer.it can print glass and plastic bottles containers with 2 colors.This machine is full servo system. It can print oval, square, flat and round bottles with 360 degrees.
This machine can equipment with camera registration for more color printing .
Glass Screen Printing Machine of 5 color
Parameters:

Model	Machine Name	Printing Size (mm)	Speed (pcs/min.)	Air Pressure (Mpa)	Power	Weight (Kg)	Packing Size (L*W*H mm)
CNC02	Automatic UV Glass\Plastic Bottle Screen Printing Machine	Height: 30-300mm	40-45	5-7Bars	380V 3P 25Kw	2500kgs	L:2700 mm W:2250 mm H:2250mm

Features:
1.Automatic loading and unloading system with multi axis servo robot
2.Automatic LED UV curing with high efficiency
3.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container
up/down all driven by servo motors.
5.Fast tooling changeover time, it's about 20 minutes for each color. All parameters automatic setting by touch screen.
6.PLC control & touch screen operation system, internet cable connection available, easy for future maintenance and upgrading
8.Safety operation with CE
9.Can use thermoplastic ink or LED UV ink.
10.The CNC screen printer can equip with visual registration as per customer requirement.
