6 Dds-17L Power Electricity Meter

Product Description

Power Meter
DDS-17L INFORMATION
Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
TYNEHAM(TAINIHAN) have a complete range of DIN-mounted electricity meters for different applications, the meters are quick and easy to install due to their DIN-rail mounting.
It is highly accurate, durable, reliable, lower power consumptive, Creep proof and strong overloading capability. It according to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21.
DDS-17L SPECIFICATIONS

1	Type	DDS-17L LCD Display Without Backlight
2	Accuracy	Class 1
3	Rated Voltage (Un)	220V or other
4	Base Current (Ib)	5A, 10A or other
5	Max Current (Imax)	20A, 32A or other
6	Frequency (Hz)	50Hz Or 60Hz (±5%)
7	Starting Current (mA)	0.4% Ib
8	Power Consumption of Current	≤2W 10VA Per Phase
9	IP Class	IP51
10	AC Voltage Withstand	2KV for 1 Minute
11	Impulse Output Rate (Imp/kWh)	1600, 800 Or Other
12	Operating Temperature	-20ºC To +55ºC
13	Storing Temperature	-40ºC To +70ºC
14	Operating Humidity	≤75%
15	Storing Humidity	≤95%
16	Communication	N/A
17	LCD Display Backlight	Optional
18	Battery	N/A

DDS-17L Function in Display and monitoring
kWh 5+1
DDS-17L Dimensions
DDS-17L Diagram

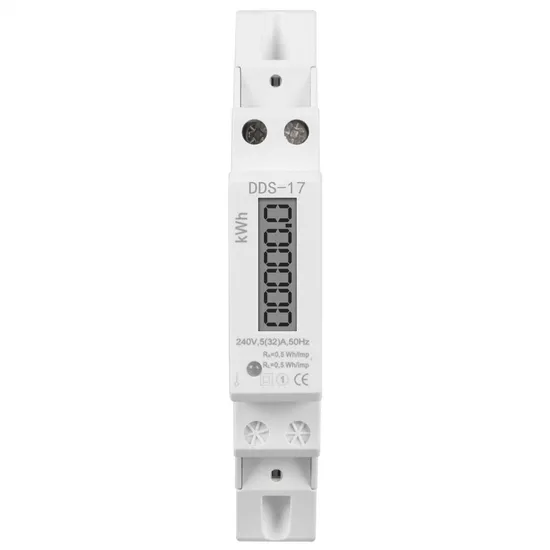

DDS-17L Front Side Photo
DDS-17L Left Side Photo
DDS-17L Back Side Photo
DDS-17L Right Side Photo
DDS-17L Top Side Photo
DDS-17L Bottom Side Photo
