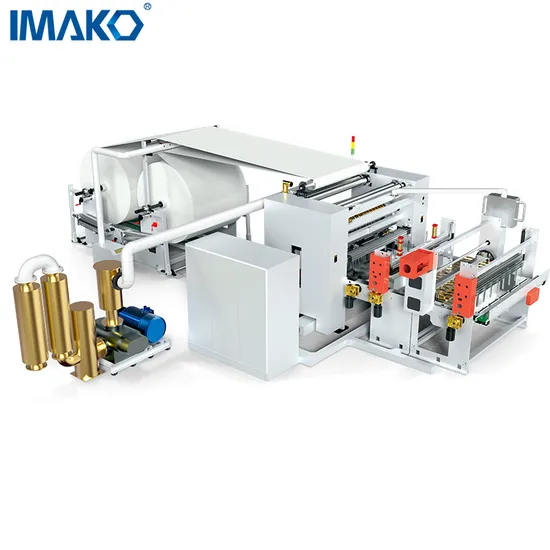

Full Automatic Making Machine for The Production of Z Folded Napkins From Non Woven Fabric

Product Description

Product Description MAIN FEATURE:
★TF-1500 automatic paper taking and folding machine can complete automatic folding, stacking and sorting of tissues and non-woven fabrics.
★The whole line adopts several servos control drive, precise stacking count to improve efficiency and product pass rate.
★It is simple to operate. Specification conversion can be completed by setting parameters.
★Pre-pressing finishing and servo turning mechanism are configured to ensure the products are neat and smooth.

Unwinding---Printing---Embossing---Folding---Counting---Cutting
1. Automatic counting and quantile column output.
2. The spiral cutter body cuts and vacuum absorbs and folds.
3. Unwinding with stepless speed regulation, adapting to base paper with different tensions.
4. Electric control pneumatic, easy to operate.
5. It can be equipped with a paper rolling pattern device, and the pattern is obvious.
6. The wide range of products is convenient for customer marketing.
7. PLC control can be configured according to requirements.
Product Parameters

Scope of application	V Fold tissue paper, non-woven fabric
Control mode of distributing mechanism	Servo controlled drive
Jumbo Roll width (mm)	1500~2050
Jumbo Roll Max size range (mm)	dia.:1500,width:2050
Choice of paper tissue folding size (unfold)	170/175/180/190	Special size please indicate
standard unreeling stand	2 group	Additional items need to be informed in advance
Embossing unit	Ordinary edge pattern,Four edge embossing, Steels/ Rubber / Wool embossing
Compressed air(MPA)	Bring your own
Layer of Jumbo Roll	2,3,4,5
Mechanical driving	Six servo shafts drive control
Options	Shaping unit,Turning off unit, Ultrasonic spray humidification unit,Buffer paper holder unit
Count set	Touch screen Settings

Application
Company Profile IMAKO is a company entirely focused on the manufacture of automated packaging equipment for household paper industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper convertors to solve their tissue paper production and toilet paper packaging needs. To become a global packaging machine manufacturer, we also provide full automatic toilet paper production line, tissue napkin production line, handkerchief production line, hand towel production line,with rewinder, folder, cutter, single packer, bundling packing machine, case packing machine and robot palletizer. we also provide packaging solutions for personal care products like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine that are built to deliver easy operation, high productivity, quick size changeover and simple maintenance.
Our mission is to innovate our technology to meet the future market changes and challenges, constinuously improve efficiency to help customers solve production problems. From design, production, solutions to services, we strive to provide you with satisfactory experience and to become your long-term partner. We remember that without the trust of our customers, we would not be here we are today.

IMAKO has been dedicated to household paper packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.
IMAKO power comes from three aspects:
A professional team with rich practical experience in serving customers in the household paper industry for many years!
Provide customers with continuous and stable technical support and assistance!
Always adhere to a strong, innovative and leading corporate culture!
Nothing is the best but can be better and better. Choose our products to give you the best experience!

Paymentterm:T/T,L/C,30% down payment when placing your order, 70% balance payment before shipment.

Delivery: It depends on the machine models and your requirement on packing sizes.Usually within 30 days of Off Season , within 50 days of peak season upon receiving deposit

After service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices.
We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit.
If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country. FAQ
