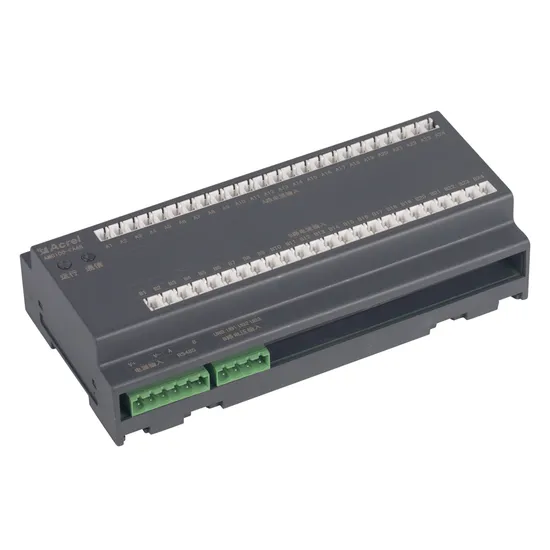

Acrel Amc100-Fak48 Multi Channels AC Precision Power Distribution Monitoring Device for Data Center RS485

Product Description

AMC100 AC Precision Power Distribution Monitoring Device With the rapid development of data centers, the energy consumption of data centers has become more and more prominent, and the energy management and power supply and distribution design of data centers have become a hot issue. Efficient and reliable power distribution system scheme of data centers is an effective way to improve the power efficiency of data centers and reduce the energy consumption of equipment. In order to realize energy saving in data center, first of all, it is necessary to monitor each power load. However, there are many load loops in data center, and traditional measuring instruments cannot meet the requirements of cost, volume, installation, construction and other aspects. Therefore, it is necessary to adopt multi-loop monitoring device suitable for centralized monitoring requirements in data center.
AMC100 series DC precision power distribution monitor is a measurement device designed specifically for power management of data center servers. The device design exquisite, can for A + B two into line and 192 road for electrical parameters, the input and output parameters of the switch state and the lightning protection device such as real-time monitoring, all alarm threshold measurement channels can be set in A separate, to qualify the limit event trigger system sound and light alarm, immediately on the volume in the traditional instrument, the height of the monitoring circuit integration. Product Description

Technical Data

Item	Data
Measurement parameters	Voltage, current, power, energy, switching status
Bus voltage rated	48VDC,240VDC,336VDC
Current outgoing loop rated	5V (Hall sensor, external supply required ±12V)
Measurement accuracy	Voltage/current 0.5 level, power/energy level 1
Auxiliary power supply	Powered by AMC100-ZD, DC 12-24V when used alone
Communication	RS485/Modbus-RTU
Installation method	DIN35mm rail or baseplate mounting
Storage temperature	-25°C~ 70°C
Working temperature	-15°C~55°C
Relative humidity	≤ 93%
Elevation	≤2500m
Protection level	IP20
Pollution level	2
Security Insulation	The insulation resistance between all terminals and the conductive parts of the housing is not less than 100MΩ
Antistatic interference	Level 4
Resistant to RF electromagnetic field radiation	Level 3
