Automatic Water Softener for Hardness Water

Product Description

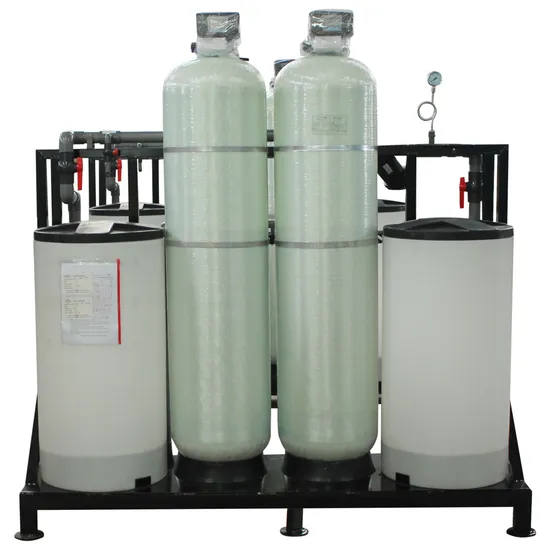

Automatic Water Softener for Hardness Water Double tanks double valves:
Single tank single valve:
Double Tanks Single Valve: Product Description
Working principle<br/>01. By means of Absorbing the calcium and magnesium ions in water with resin, since the hardness of water is mainly composed of calcium and magnesium, in general, we adopt cation exchange resin (softener), replace Ca2+, Mg2+ (main ingredients for scale) in water, as the increase of Ca2+ and Mg2+ in resin, removing performance on Ca2+, Mg2+ of resin will gradually reduce.<br/>02. When the resin has absorbed a certain amount of calcium and magnesium ions, it must be regenerated, the regeneration process is that flush resin layer with the salt water in salt box, replace hardness ion out of the resin again, and discharged from the tank with waste liquid of regeneration, then resin resumed the function of softening and exchanging.<br/>03. The principle of sodium ion exchange and softening treatment is to exchange cation in the raw water with resin, hardness constituents Ca2+and Mg2+ in water exchange Na+ in resin, thus absorb the Ca2+and Mg2+ to make the water to be softened.<br/>2RNa + Ca2+ = R2Ca + 2Na+ <br/>2RNa + Mg2+ = R2Mg + 2Na+ <br/>After the water treated by sodium ion exchanger, the Ca+ and Mg+ were superseded by Na +.<br/>Application scope of softener<br/>Mainly used in industry and civil water softening preparation, such as Boiler feed water make-up water, air conditioning system make up water, heat exchanger, power plant, chemical, textile, printing and dyeing, bio-pharmaceutical, Electronic system and water pretreatment.<br/><br/><br/>Control mode of fully automatic water softener<br/>(1)Single tank time type: it adopts microcomputer to control the time, when operation of the equipment reaches setting time, it will automatically enter the regeneration condition, which can be regenerated for once a day or once for some day.<br/>(2)Single tank flow type: it adopts control of turbine flow or electronic flow sensor, when the yield of softener reaches preset flow it will automatically enter the regeneration condition, which can be recycled many times every day.<br/>(3)Double tanks flow type: which could be divided into one running-one alternating, and simultaneous running and separately regeneration.<br/>(4) One running and the other alternation type: one tank is running while the other is alternating, when water yield of operating tank reaches the preset flow rate, it will enter the regeneration stage, meanwhile, the other tank will enter the working state, these two tanks work and regenerate alternatively to realize continuous water supplying of 24 hours.<br/> (5)Simultaneous running and separately regeneration type: two cans running simultaneously, when the flow rate reaches the setting rate, one tank (can) will regenerate and the other tank will output water continuously, when the first regeneration tank finish the regeneration it will enter the working stage, the other one will enter regeneration stage, these two cans finish regeneration and enter working state simultaneously.<br/>Packaging & Shipping
Product Parameters
Specifications:

Type	Model	Water Output (m³/hour)	Resin-tank<mm> (diameter*Height)	Brine-tank(Liter)	Resin (kg)
Single Valve Single Tank	YL-I-0.5	0.5	200×900×1PC	60×1PC	20
	YL-I-1	1	250×1400×1PC	60×1PC	40
	YL-I-2	2	300×1400×1PC	100×1PC	60
	YL-I-3	3	350×1400×1PC	130×1PC	80
	YL-I-4	4	400×1650×1PC	200×1PC	120
	YL-I-5	5	500×1750×1PC	300×1PC	180
	YL-I-6	6	600×1900×1PC	350×1PC	240
	YL-I-10	10	750×1900×1PC	500×1PC	360
	YL-I-18	18	900×1900×1PC	800×1PC	520
	YL-I-25	25	1000×2200×1PC	1000×1PC	720
	YL-I-35	35	1200×2400×1PC	1500×1PC	1000
	YL-I-50	50	1500×2500×1PC	2000×1PC	1600
Dual Valve Dual Tank (Simultaneous working, alternate regeneration)	YL-II-36	36	900×1900×2PCS	800×2PCS	1040
	YL-II-50	50	1000×2200×2PCS	1000×2PCS	1440
	YL-II-70	70	1200×2400×2PCS	1500×2PCS	2000
	YL-II-100	100	1500×2500×1PCS	2000×2PCS	3200
Dual Valve Dual Tank (One work, one standby)	YL-II -1	1	250×1400×2PCS	60×2PCS	80
	YL-II-2	2	300×1400×2PCS	100×2PCS	120
	YL-II-3	3	350×1400×2PCS	130×2PCS	160
	YL-II-4	4	400×1650×2PCS	200×2PCS	240
	YL-II-5	5	500×1750×2PCS	300×2PCS	360
	YL-II-6	6	600×1900×2PCS	350×2PCS	480
	YL-II-10	10	750×1900×2PCS	500×2PCS	720
	YL-II-18	18	900×1900×2PCS	800×2PCS	1040
	YL-II-25	25	1000×2200×2PCS	1000×2PCS	1440
	YL-II-35	35	1200×2400×2PCS	1500×2PCS	2000
	YL-II-50	50	1500×2500×2PCS	2000×2PCS	3200

Packaging & Shipping
Normal Packing :Wooden boxes packaging into container
FOB TO Shanghai
Certifications Installation Instructions
After Sales Service Our services:
We provide 24 hours online customer service.
Any inquiry about water treatment system, please feel free to contact me for further details!
Contact information:

Website: http://yldwater.en.made-in-china.com
Official website: yldwater.en.made-in-china.com
Guarantee period:1 year Company Profile Development History:
