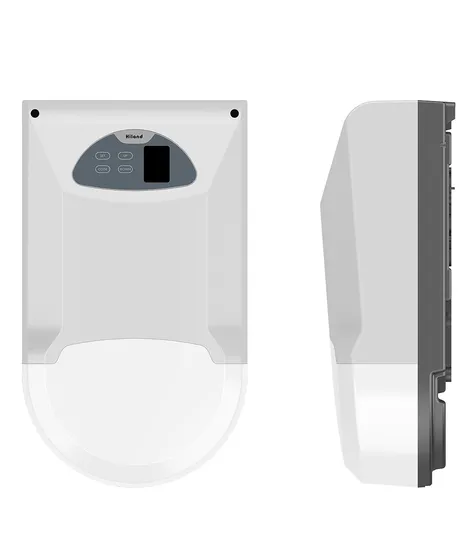

Hiland Gdo600 New Design Electromechanical Garage Door Opener

Product Description

Technical Characteristics

Model

Lifting

Max door size and weight

Input

Motor

Speed

Radio frequency

Coding

Battery

Light

Light time

Working temperature

Working humidity

GDO600

600N

8~10m², 80~100kg

220VAC±10% 50~60Hz

24VDC

13-15cm/s

433.92MHz

Rolling code

3V CR2032

24V 5W

3minutes

-20~50ºC

<=90%

GDO800

800N

10~12m², 100~120kg

GDO1000

1000N

12~14m², 120~140kg

GDO1200

1200N

14~18m², 140~180kg

GDO1800

1800N

18~20m², 180~200kg

Functions
1.Micro intellectual control -- One button to control open, stop and close.
The light is on while opening or closing the door, three minutes later the light is off automatically. The unit running is controlled by computer program. Test the force of open or close the door, the optional function is photo beam, auto-close, lock door, etc.The door pauses momentarily then rebounds when it reaches the hinders on the closing way. The protecting functions are overload, over hot or low power input, etc.
2.DC motor -- Low noise, soft start, slow stopping to protect the unit and make sure it can be used for a long time.
3.LED display -- Working situation can be shown on the LED screen. Decoding -- Rolling code.
4.Manual Disengagement-- Open and close the door by hand without power. Optional Functions -- Photo beam, battery backup and wall button
