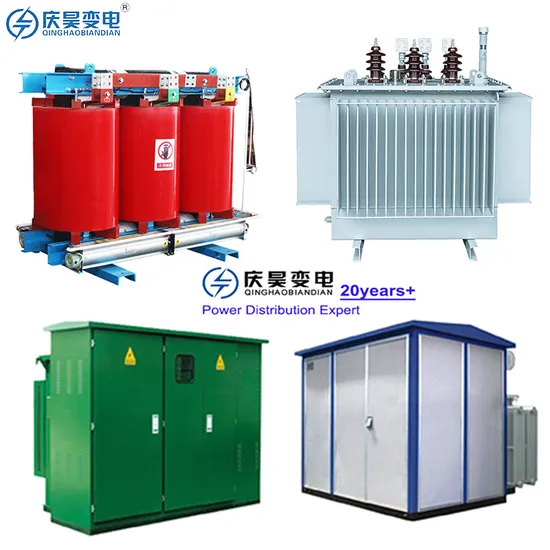

Cast Resin Dry Type Power Transformer Manufacturers China Factory 3-Phase Indoor Oil-Immersed High Voltage Step Down up kVA Mva Distribution Transformer Price

Product Description

Product DescriptionQinghao dry type distribution transformer includes cast resin insulation, amorphous alloy and on-load tap changer type, which provides general security for environment with its non-flammable, self-extinguished, toxic gas-free structure and low noise level.
SCB series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically. The core is made of high-permeable grain-orientated silicon sheet and cast with imported epoxy resin. It is humidity proof and suitable for operating in humid and extremely polluted environments. They are ideal transformers to work at -40°C and more than 95% humidity level. Our dry type distribution transformer primary voltage range includes 6,6.3,10.5,11,20,22,24,33, 35,38.5kV and max rating can up to be 3150kVA, which can be manufactured according to customer requirements.
Flame retardant, low temperature rise, maintenance free, long-term full load operation and eco-friendly.
Main Characteristics:
1. The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life.
2.The high and low voltage systems are cast under vacuum; thus the coil will not absorb moisture; the clamps of core are subjected to corrosion-resistant treatment and it may run under high temperature of other serious environments.
3. Flame-retardant, explosion proof and no environmental contamination. The insulating materials in the coil such as glass fiber are self-extinguishing and they will not case fire by the arc resulted from short-circuit. The resin will not generate toxic or harmful gas under high temperature.
4. Gas duct is embedded inside it to enhance the radiation power and over-load capacity.
5. Low-loss and low-noise. The core is lapped with 45°full-miter and the step-type lamination effectively improves distribution of magnetic flux at core corners, and greatly reduces the no-load loss and the noise level.
6. It highly withstands short-circuit and lightning impact.
7. Small in volume, light in weight, safe in running and free of maintenance.
8. As per user's requirements the transformer may be provided with casing and blower fan.
Advantages:
1. High mechanical strength and strong short circuit resistance ability.
2. Good moisture resistance and run with 90% humidity.
3. Advanced structure, small dimension, light weight and low partial discharge.
4. High insulation level and equal electric field distribution.
5. Strong heat dissipation, run with 150% rated load under forced air cooling.
6. Fireproof, explosion-proof, pollution-free and low-noise and able to be directly installed in the load center.
7. Easy installation, operation and maintenance.
Applications
Mainly used for infrastructure, public transportation, construction and housing, industry, information technology and new energy power transmission and distribution.
Service environment:
1. Ambient temperature: Maximum +45ºC, Minimum -30ºC
2. Altitude: less than 1000 meters.
3. Max. air relative humidity90% (±25ºC).
4. Max. Ground ramp degree 3°.
5. The earthquake: the horizontal acceleration≤0.3m/s2 ,the vertical acceleration≤0.15m/s2.
6. The installation site shall be free from explosion danger, fire, filthy material, chemical corrosion and violent vibration.
(Note: If the application environment is different from the above standard conditions, please contact for customized designs.)
Please check below quick links for other product types.

Control Transformer	Oil Immersed Transformer	Dry Type Transformer
Substation Transformer	Switchgear	Distribution Cabinet

Product Parameters
The rated voltage can be customized as customers' requirements. For instant communication, please click here.

10KV Series Amorphous Alloy Dry Type Distribution Transformer Performance Parameters
High Voltage:10(6,6.3,10.5,11)KV Connection Symbol:D,yn11 or Y,yn0 Rated Frequency:50Hz/60Hz Low Voltage:0.4(0.415,0.433)KV Tapping Range of HV:±2x2.5% Insulation Level:LI75 AC35/AC3
Rated power (KVA)	Short-Circuit Impedance(%)	SC(B)H19 (W)		SC(B)H17 (W)		SC(B)H 15(W)		No-Load Current (%)	Sound pressure dB(A)	Weight (kg)	Inner Dimension(mm)			Overall Dimension(mm)
		No-Load Loss	On-Load Loss120ºC	No-Load Loss	On-Load Loss120ºC	No-Load Loss	On-Load Loss120ºC				L	W	H	L	W	H
30	4	50	640	60	640	70	710	0.6	60	640	1200	1000	750	1700	1350	2200
50		60	900	75	900	90	1000	0.5	60	720	1200	1000	790	1700	1350	2200
80		85	1240	100	1240	120	1380	0.5	62	840	1300	1100	830	1700	1350	2200
100		90	1415	110	1415	130	1570	0.5	62	920	1300	1100	860	1700	1350	2200
125		105	1665	130	1665	150	1850	0.4	63	1050	1350	1100	900	1700	1350	2200
160		120	1915	145	1915	170	2130	0.4	63	1180	1350	1110	900	1700	1350	2200
200		140	2275	170	2275	200	2530	0.4	64	1480	1380	1100	980	1700	1350	2200
250		160	2485	195	2485	230	2760	0.4	64	1510	1410	1100	1000	1800	1350	2200
315		195	3125	235	3125	280	3470	0.3	66	1790	1540	1100	1030	1900	1400	2200
400		215	3590	265	3590	310	3990	0.3	66	2150	1600	1100	1100	2100	1500	2200
500		250	4390	305	4390	360	4880	0.3	67	2390	1650	1100	1230	2100	1500	2200
630		295	5290	360	5290	420	5880	0.3	68	2650	1620	1200	1230	2100	1500	2200
630	6	290	5365	350	5365	410	5960	0.3	68	2600	1620	1200	1230	2100	1500	2200
800		335	6265	410	6265	480	6960	0.3	69	3230	1780	1200	1290	2100	1500	2200
1000		385	7315	470	7315	550	8130	0.2	69	3740	1870	1200	1430	2300	1500	2200
1250		455	8720	550	8720	650	9690	0.2	71	4530	2000	1200	1480	2500	1500	2200
1600		530	10555	645	10555	760	11730	0.2	72	5360	2130	1200	1610	2500	1500	2200
2000		700	13005	850	13005	1000	14450	0.2	74	6250	2170	1300	1940	2600	1600	2200
2500		840	15445	1020	15445	1200	17170	0.2	75	7320	2280	1300	2100	2600	1600	2200
Note: The above parameters are only for designing and selecting reference, and the final parameters are subject to the actual product.

Detailed PhotosMain Components:Core: Typically made of laminated steel sheets in E-I shape or a stacked CORE formation.Windings: Primary Winding and Secondary Winding.Insulation: To prevent electrical conductivity between windings and the core, and turns of the windings. Enclosure: Have a ventilated enclosure made of steel or composite material to protect dust, moisture, and corrosion. Bushing: Maintain electrical isolationTemperature Monitoring Devices: Include temperature sensors or thermal switches to monitor temperatures.Ventilation System: Some with a forced-air cooling system with fans to enhance heat dissipation. Protection Devices: Fuses, circuit breakers, or surge arresters can be installed to protect the transformer against overcurrent, short circuits, or voltage surges.
Packaging & Shipping Company ProfileQinghao Transformer is a reliable and specialized power transmission and distribution equipment manufacturer for over 20 years with a registered capital of USD8,000,000.
Except for ISO9001, ISO14001, ISO45001 certificates, we are also TUV audited suppliers with AAA enterprise and AAA products honors. All products comply with GB and IEC related standards, which mainly include oil immersed distribution transformer, dry-type transformer, amorphous alloy transformers, combined transformer substations, circuit breaker, cable branch box, high low voltage switchgear cabinet distribution equipment.
With the concept of "World-class transformers, smart solutions", Qinghao Transformer is devoting to provide high-quality power for customers.
Let us cooperate with a brighter future! FAQQ: Are you a Manufacturer or Trading company?
A: We are the original factory with approved export license.
Q: What's your warranty terms?
A: We offer 24 months warranty time.
Q: How long is the production time?
A: 25 to 45 days or depending on order requirements.
Q: What should provide to make custom transformer?
A: Technical drawing and specification documents are the best, or you can list key parameters for designing.
Q: How can I trust you?
A: We are TUV aduited supplier with many patent certificates, type test reports, CQC, CE, KEMA, ISO certificates. We can provide on site services for many areas like South America, Indonesia, etc.
