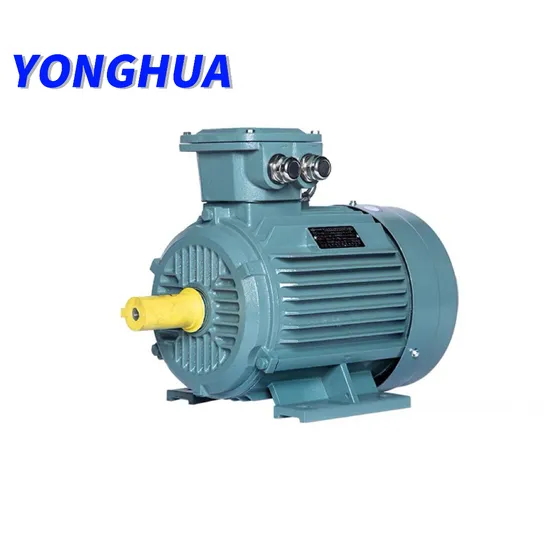

Industrial Fan Ybx3-80-355 Series of Flameproof High Efficiency Threephase Induction Motor

Product Description

IE3 IE4 IE5 CE CCC Three Phase AC Electric Motor Asynchronous Induction Motors 0.12~800kw --------------------------------------------------------------------------------------------- Applications: Can be applied in the machines where continuous duty is required, typical applications like Pumps Fans Compressors Lifting equipment Production industr General Description Frame sizes: 63 to 355M/L Rated output: 0.12 to 400kW Voltage: 380V Frequency: 50Hz or 60Hz Poles: 2, 4, 6, 8,10 Efficiency levels: IE3 Duty Cycle: S1 Enclosure: IC411 - TEFC Insulation class: F Degree of protection: IP55/56/65/66 Service Factor: 1.0 Regreasing system: Frame 250 and above Features
Beautiful profile, high efficiency and energy saving (Level 2 of GB18613-2012), low noise, little vibration, reliable running. Optional Features
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Protection Degree:IP56, IP65, IP66
Sealing:Lip seal, Oil seal
Space Heater, Double shaft ends
Drain Hole
Factory
Main process flow of the motor Motor stator: casing processing → punching press → iron core seating → coil making → weaving → dipping paint drying Electronic rotor: blank shaft processing → iron core press installation → iron core cast aluminum → rotor string shaft → weave → dipping paint drying → dynamic balance Motor assembly: stator rotor assembly → machine test → motor appearance coloring → packaging storage


Professional export packaging
Professional export of wooden cases, cartons, pallets and other packaging, protect the motor from damage in transportation, protect the privacy of customers packaging information, professional export for 20 years
Professional equipment
The company has large-scale laboratory, intelligent CNC winding machine, CNC rising machine, automatic wrapping machine, VPI high pressure vacuum immersion system, large-scale dipping paint drying furnace, 60 tons test platform, large vertical car, milling machine, grinding machine, Each type of dynamic balancing machine, double-feedback test and detection system with 6MW (12MW) motor and other motor production professional equipment more than 500 sets, sound mechanical equipment processing capacity, to lay a good foundation for customers to improve good quality motor products.
CONTACT INFORMATION If you are interested in our products motor,pls feel free to contact us! Thank you very much! ANHUI YONGHUA MOTOR TECHNOLOGY CO., LTD
ADDRESS: No. 8 Shengli East Road, Longzihu District, Bengbu, Anhui, China



Welcome to visit our factory!!!
