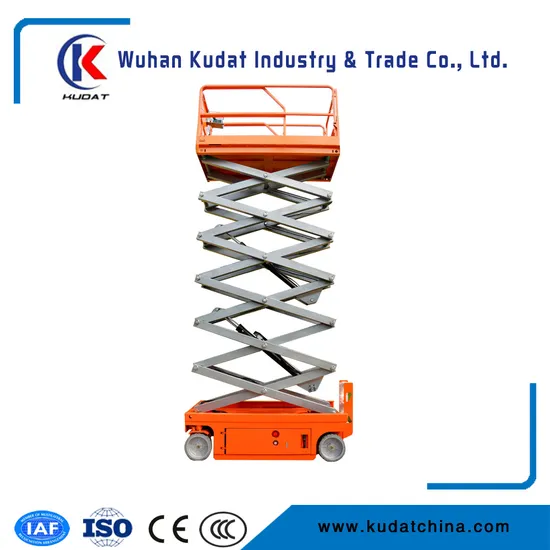

Kudat Self Propelled Electric Scissor Lift 13.8m
| US$4,500.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
S12
Carrying Capacity
Light Level
Moves
Self-propelled
Driven Type
DC
Running Mode
Moving
Feature
Aerial Work Platform
Certification
CE
Installation
Tyre Crane
Type of Work
Light Level
Max.Working Height
13.8m
Max.Platform Height
11.8m
Loading Capacity
320kg
Size of Platform
2.27×1.12 M
Platform Extension Size
0.90×1.12 M
Power
24V/3.3kw
Battery
4×6V/225ah
Max Climbing Ability
25%
Transport Package
Bulk
Specification
SGS
Trademark
KUDAT
Origin
China
Production Capacity
500PCS/Month
Product Description
CONFIGURATION:1, Battery :Trojan from USA
2, Drive motor: Changba or Changqian from China
3, Charger : Keneng from China
4, Control system: DTC from USA
5, Group valve: Hydraforce from USA
6, Motor & braking : White from USA
7, Oil Pump: Bravini from ITALY
8, Tyre :Exmiletyre from China
9, Filter: Donaldson from USA
| Model | S12 |
| Max.working height | 13.8m |
| Max.platform height | 11.8m |
| Loading Capacity | 320KG |
| Size of platform | 2.27×1.12 M |
| Platform extension size | 0.90×1.12 M |
| Overall stowed height(lift) | 2.58M |
| Overall stowed height(lower) | 2.04M |
| Overall stowed length | 2.435M |
| Overall stowed width | 1.15M |
| Power | 24V/3.3KW |
| Driving speed-Eleveted | 3.5KM/H |
| Driving speed -Lowered | 0.8KM/H |
| Lift/Lower time | 84/38sec |
| Battery | 4×6V/240AH |
| Max climbing ability | 25% |
| Maxmum slope | 3° |
| Wheel size | φ381mm×127mm |
| Extend platform safe working load | 113KG |
| Total weight | 2888KG |
