Dry Sand Making Production Line Sand Manufacturing Systems

Product Description

Dry Sand Making Production Line Sand Manufacturing Systems
Product Description

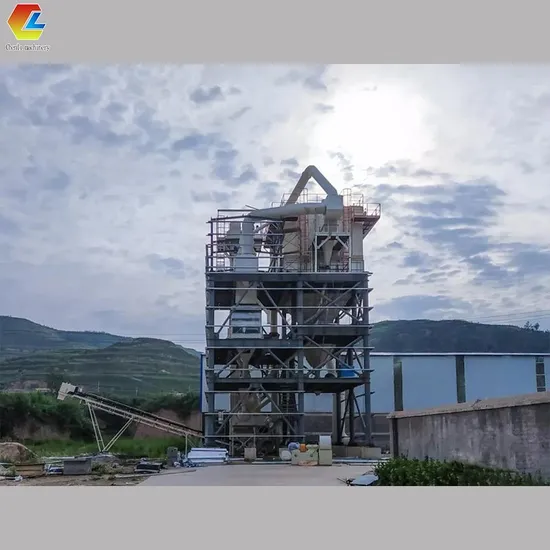

sand manufacturing systems, also known as the tower sand making machine line, is a modern advanced sand making system. The use of certificate closed state, relying on neutral conveying, can greatly reduce energy consumption, improve the operation effect, and ensure environmental protection. Although the sand manufacturing systems requires a large number of steel structures, and the construction cost is slightly higher than that of the tiled production line, the space utilization rate is very high. The closed workshop can effectively control the dust, and the production is more environmentally friendly, which is more in line with the production standards of modern environmentally friendly sand making.
Component
Working principle
1. The material is crushed by sand manufacturing systems, eliminating the needle-shaped material, removing the sharp edges and corners of the sand, so that the grain size reaches the required size.
2. The crushed material is evenly transported to the mold-controlled sieve through the conveyor and vibrating feeder, the material is graded, and the grading of the sand is finely controlled. The unqualified material is returned to the sand manufacturing systems for crushing, and the excess stone powder is removed by a dust removal collector.
3. Separate the qualified finished product into the humidifying agitator, and then mix and wet to control the moisture content of the finished sand to further ensure the quality of the finished sand.
4. The excess stone powder produced in the production is collected by the pulse dust collector, sent to the finished material tank by the pneumatic conveying system, and then packaged and transported.
Configuration
Taian Chenli's independently developed sand manufacturing systems adopts a fully enclosed tower layout, efficient single-machine performance and reasonable process connection, which makes the finished sand full in shape, reasonable in gradation and controllable in moisture content. The various indicators of machine-made sand are comparable to those of natural sand, and can meet the application requirements of different occasions such as concrete mixing plants, mortar plants, and sand and gravel yards.

Product Name	Dry Sand Making Plant
Model	LZS70	LZS100	LZS150
Theoretical feeding amount(t/h)	50-70	80-100	125-150
Output(t/h)	40-60	70-90	110-135
Sand making machine power(kw)	264	400	630
Maximum aggregate particle size(mm)	40	40	40
Moisture content of raw materials	Less than 1%	Less than 1%	Less than 1%
Stone powder content of finished sand	5%-15%	5%-15%	5%-15%
Finished sand fineness modulus	2.3-3.0	2.3-3.0	2.3-3.0
Equipment installed power(kw)	425	615	910
Remark: The theoretical maximum feeding amount of dry sand making plant refers to the amount of manufactured sand input when using limestone with a particle size less than 15mm and a compressive strength of 100MPa as raw material to produce a fineness modulus of 3.0.

Product Name	Dry Sand Making and Molding Plant
Model	LZS-1030		LZS-1545
	Sand making	Sand molding	sand making	sand molding
Maximum feeding aggregate particle size(mm)	40		40
Maximum feeding amount(t/h)	100	300	150	450
Moisture content of raw materials	Less than 1%		Less than 1%
Equipment installed power(kw)	780	Subject to the actual plan	980	Subject to the actual plan

Product Name	Extra Fine Sand Making Plant
Feeding Material Particle Size	Moisture content of raw materials	Max. Output	Power
0-15mm	Less than 1%	15-30t/h	About 400kw

Packaging & Shipping
The dry sand manufacturing systems has an overall modular design, simple and compact structure, suitable for container transportation.
