Hydraulic Radial Drilling Machine Z3050*16
| US$7,800.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050*16
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Dimensions of Box Table
630X500X500mm
T Slot of Box Table
5/22/150
Spindle Axis to Column
350-1600mm
Spindle Motor Power
4kw
Transport Package
Plywood Case
Specification
2580x1140x2550mm
Trademark
white eagle
Origin
China
HS Code
8459290000
Production Capacity
10000/Month
Product Description
1.Z3050*16 Specification| unit | Z3050x16 | |
| worktable :- | ||
| Dimensions of Box Table | mm | 630x500x500 |
| T slot of box table | no | 5/22/150 |
| Dimensions of Base | mm | 2400x1000x200 |
| Working Surface of Base Plate | mm | 830X1660 |
| T slot of base | 4/28/180 | |
| Max. load of worktable | kg | |
| machining range :- | ||
| spindle axis to column | mm | 350-1600 |
| spindle nose to table surface | mm | 320-1220 |
| spindle head travel(horizontal) | mm | 1250 |
| spindle :- | ||
| Spindle taper | MT5 | |
| quill travel | mm | 315 |
| Max.drilling diameter | mm | 50(steel) |
| Max.tapping diameter | mm | M16*2(steel) M20*2.5(Cast iron) |
| spindle Speed Range /steps | rpm | 25-2000/16setps |
| Max.spindle torque | Nm | 500 |
| spindle feed/steps | 0.04-3.2/16steps | |
| -motor | ||
| spindle motor power | kw | 4 |
| elevating motor for Arm | kw | 1.5 |
| coolant pump | KW | 0.09 |
| --others | ||
| clamping type | Hydraulic clamping for longitudinal | |
| ,vertical and radial movement | ||
| overall dimension (L*W*H) | mm | 2480x1040x2750 |
| package dimension (L*W*H) | mm | 2580x1140x2550 |
| N/W | KG | 3500 |
Packing list
| No. | Name | Specification | Qty | Remark | |
| 1 | Machine | Z3050×16/1 | 1 | Elevating motor was dismantled, it need to be installed by user. | |
| 2 | Table | 630×500×500 | 1 | It is on the base of the machine. | |
| 3 | Hexagon nut | M24 | 12 pieces | There are 5 pieces on the machine. | |
| 4 | Foundation bolt | M24×450 | 6 pieces | ||
| 5 | T-slot bolt | M24 | 6 pieces | There are 5 pieces on the machine. | |
| 6 | Washer | 24 | 12 pieces | There are 5 pieces on the machine. | |
| Technical document | |||||
| No. | Name | Qty | Remark | ||
| 1 | Operation manual | 1 | |||
| 2 | Radial drilling machine installation guide | 1 | |||
| 3 | Packing list | 1 | |||

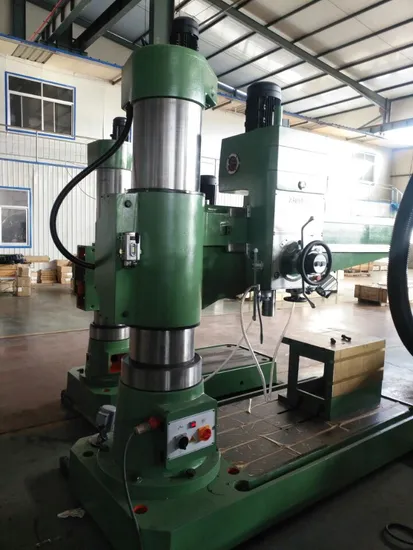

3.Machine photos
