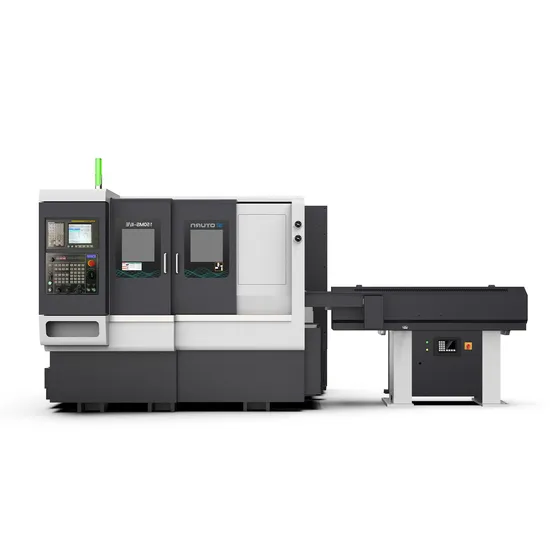

Double Spindle Slant Bed CNC Turning Lathe

Product Description

Product Description
Experience the unparalleled strength of our HT300 high-strength one-piecestructurecastingironbed, featuring a robust 30-degree steptypeflat rail design. Using advanced finite element analysis, the bed delivers exceptional rigidity and stability, ensuring long-term precision, processing consistency, and extended tool life. A stress relief treatment enhances accuracy and stability. The high-strength roller rail and screw pre-tension drive system further amplify response rigidity.toboost accuracy and stability, our machine incorporates a high-strength roller rail design and a pre-tensioned screw drive system, enhancing the overall response and rigidity.
Both ends of the workpiece can be machined simultaneously, significantly simplifying manual operations, boosting output, and streamlining processes. The second spindle delivers full turning capabilities and allows for real-time workpiece expression during machining, drastically reducing cycle times.
1.Direct drive synchronous electric spindle device: featuring a magnetic ringtypeincremental encoder (Sine and cosine) with positioning accuracy of 20 arc seconds and C-axis indexing accuracy of 40 arc seconds.
This innovation effectively eliminates spindlevibration, maintaining nose end deflection accuracy within 0.002mm. It significantly enhances workpiece surface finish.
A rear-mounted rotor facilitates easy installation and maintenance.
The spindle motor features a cooling system to counteract thermal displacement, stabilizing the spindle's working temperature. The spindle system, having passed stringent dynamic balance tests, offers excellent precision retention, high rigidity, and efficiency. This enables the machine to perform both finishing and heavy-duty rough machining, perfect for mass production of complex, high-finish parts.products.
2. High rigidity integral servo power turret with rapid and precise tool changes. The high-rigidity BMT interface tool holder, combined with a servo spindle motor-driven power transmission shaft, ensures exceptional performance.
3. Equipped with THK linear guide rails and ball screws, the heat-treated and precision-ground ball screws ensure optimal precision and durability. Each axis uses a direct transfer shaft structure and double-anchor pre-relay system to minimize thermal displacement and significantly improve machining accuracy. The machine's high rigidity, large size, and heavy-duty linear slide rails maintain accuracy even under impact, providing smooth displacement and low noise, thereby extending service life.
4. Standard configuration includes the FANUC system, with feed drive powered by a FANUC servo motor.
5. The perfect hydraulic and lubrication system utilizes high-quality hydraulic pumps and valves, significantly reducing failure rates. The design is both simple and reliable.
6. Featuring a Taiwan rotary chuck, oil cylinder, and automatic chip removal device, the machine greatly reduces operator labor intensity while ensuring safe and efficient production. All functional components are programmable for optimal control. Special fixtures are available upon request.
Product Parameters

Item	Unit	150MS-II/E
Max. swing diameter over bed	mm	Ф380
Max. processing diameter	mm	Ф100
Max. processing diameter Over tool holder	mm	Ф160
Max. processing length	mm	150
Spindle nose	type	A2-5
Max. speed of spindle	rpm	5500
Oil cylinder/Chuck	"	6
Spindle bore diameter	mm	Ф56
Bar diameter	mm	Ф45
Direct drive spindle motor power	kw	17.5
Spindle torque	N.m	62-125
Sub spindle nose	type	A2-4
Max. speed of Sub spindle	rpm	6000
Oil cylinder/collect	"	5
Sub spindle bore diameter	mm	Ф46
Bar diameter	mm	Ф32
Direct drive sub spindle motor power	kw	11
Sub spindle torque	N.m	27-66
X1/Z1 motor power	kw	1.8/1.2
X2/Z2 motor power	kw	1.2/1.2
X1/Z1 travel	mm	135/370
X2/Z2 travel	mm	215/400
X1/Z1/X2/Z2 fast moving	m/min	30/30/30
X1/Z1 slide rail type	/	Roller 35/35
X2/Z2 slide rail type	/	Roller 30/30
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Upper power turret type	/	BMT45-12T
Upper power turret motor	Kw/N.m	2.2/26
Max. speed of upper power turret	rpm	6000 ER20
Specification of outer diameter tool holder	mm	20x20
Specification of inner diameter tool holder	mm	Ф32
Adjacent tool change time	sec	0.15
Lower turret type	/	NC8T
Max. speed of lower power turret	mm	25x25
Specification of outer diameter tool holder	mm	Ф32
Specification of inner diameter tool holder	sec	0.15
Machine dimension	m	2.2x2.1x1.7
Machine weight	kg	3200
Cutting fluid tank volume	L	180
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750
