Stacker Forklift 3m/3.5m Lift Height 12t 1.5t 3300lbs Walkie Stacker Electric Lifter Option Straddle Legs and Lithium with CE

Product Description

Company Profile
Shandong Topsense Machinery Co., Ltd is one of the leading supplier of wheel loader, backhoe loader, mini excavator, electric forklift and diesel forklift. We do OEM for world brands for many years.We export our product to more than 46 countries in the worldwide including France, Spanish, Mexico, Brazil, Argentina, USA, UK, India, Singapore etc.We looking forward to build long term business relationship with the customers from overseas.
Product Parameters

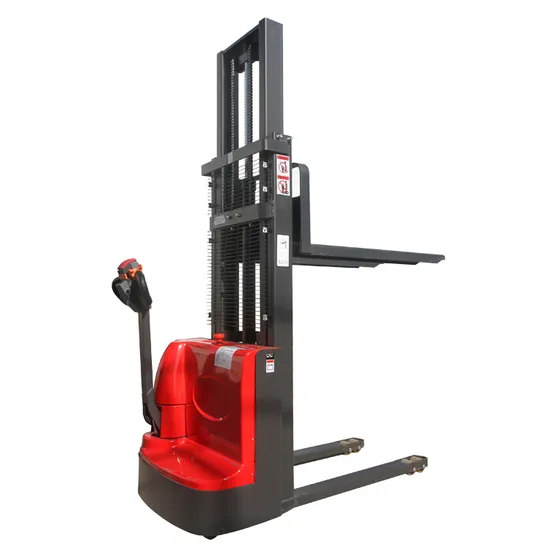

Walkie Full Electric Pallet Stacker Our full electric lift trucks have an ultra-small turning radius that solves the problem of expensive, narrow passages that large forklifts are not allowed to pass. Mainly used in various factories, warehouses, logistics storage and loading and unloading, short-distance stacking and handling.
With strength, versatility & reliability in mind, our range has been chosen to satisfy the demands of handling and warehousing professionals.

Main information
1.1	Model No.		CDD15
1.2	Power type		Electric
1.3	Type		Walk
1.4	Lifting capacity	Q (kg)	1500
1.5	Load center distance	c (mm)	500
1.6	Load length	x (mm)	808
1.8	Wheel base	y (mm)	1209
Weight
2.1	Machine weight (With battery)	kg	550
Tyre
3.1	Tyre type		PU/PU
3.2	Drive wheel(Diameter×Width)		Ø210×70
3.3	Load wheel(Diameter×Width)		Ø74×88
3.4	Balanced wheel(Diameter×Width)		Ø130×55
Dimension
4.1	Height when mast lowered	h1 (mm)	1817
4.2	Max. lifting height	h3 (mm)	2430
4.3	Mast height when lift at highest	h4 (mm)	3071
4.4	Operating position: Minimum/maximum height of lever	h14 (mm)	750/1340
4.5	Height when fork lowered	h13(mm)	90
4.6	Length	l1 (mm)	1708
4.7	Length of the vertical plane of the arrival fork	l2 (mm)	526
4.8	Width	b1/ b2 (mm)	882
4.9	Fork dimension	s/ e/ l (mm)	60/190/1150
4.11	The width of the rack	b3 (mm)	710/795
4.12	Fork outside width	b5 (mm)	600/685
4.13	Aisle width for pallet of 1000x1200mm	Ast (mm)	2036
4.14	Aisle width for pallet of 800x1200mm	Ast (mm)	2136
4.15	Min Turning radius	Wa (mm)	1392
Performance
5.1	Drive speed Full load/unload	km/ h	3.7/4.0
5.2	Lifting speed Full load/unload	m/ s	0.08/0.135
5.3	Lowing speed Full load/unload	m/ s	0.105/0.097
5.4	Climb ability Full load/unload	%	3/10
5.5	Brake type		Electromagnetic
Battery and motor
6.1	Drive motor S2 60min	kW	0.75
6.2	Lifging motor S3 15%	kW	2.2
6.3	Battery Volt/ capacity	V/ Ah	2x12/80
Drive/lifting controller
7.1	Drive control type		DC

Product advantages
1. Simple, flexible, light weight and small turning radius make the truck suitable use
in extremely narrow aisle. 2. Strong structure and open layout make the maintenance easy
3. Same hydraulic pump with the hand pallet, simple and reliable
4. Integrated handle integrates key and meter make the operation easy and confortable.

Detailed Photos

Packaging & Shipping

Customer Feedback

FAQ

Q1. What is your terms of packing?A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.Q2. What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.Q3. What is your terms of delivery?A: EXW, FOB, CFR, CIF, DDU.Q4. How about your delivery time?A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time dependson the items and the quantity of your order.Q5. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q6. What is your sample policy?A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost andthe courier cost.Q7. Do you test all your goods before delivery?A: Yes, we have 100% test before deliveryQ8: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them,No matter where they come from.
