Automatic CNC Lathe Machine with D11 Spindle End Form Design

Product Description

Product Description
The CNC lathe is a cornerstone in the realm of CNC machine tools, celebrated for its versatility and precision. It excels in cutting both inner and outer cylindrical surfaces of shaft and disk parts. Whether you're dealing with conical surfaces of any angle, intricate curved surfaces of revolution, or threading cylinders and cones, this machine handles it with finesse. Additionally, it adeptly performs grooving, drilling, reaming, and boring, delivering exceptional results every time.
Advantages
Enhancinglabor efficiency and elevating processing quality; Boost productivity while ensuring superior processing quality;
Accelerate production preparation and lower the technical skills required for operators.
Features

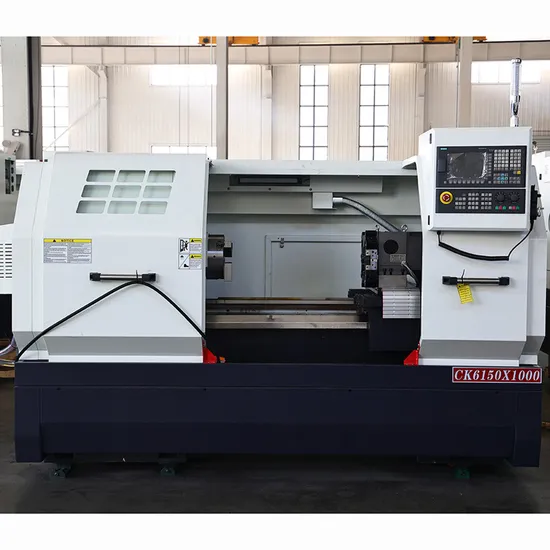

Remarkable processing precision and consistency in quality; Facilitates multi-coordinate linkage, enabling the precision machining of complex shapes; Adaptability shines when part designs change, often necessitating only a simple NC program update, significantly cutting down preparation time; The tool boasts high precision and rigidity, allowing for optimal processing doses, thus maximizing productivity; The machine's advanced automation significantly reduces operator workload. Detailed Photos

Product Parameters

Item	unit	ck61100
Maximum turning diameter of the bed	mm	φ1000
Maximum turning diameter on the pallet	mm	φ630
Maximum processing length	mm	1500/2000/3000
Spindle drive form	/	Fourth gear
Spindle speed series	/	stepless speed change
Spindle speed	r/min	30-84/53-150/125-350/300-835
Spindle end form	/	D11
Spindle hole front taper	/	Metric120 1:20
Spindle through hole diameter	mm	105
X/Z axis positioning accuracy	mm	0.025/0.03
X/Z axis repeat positioning accuracy	mm	0.01/0.015
Workpiece machine accuracy	/	IT6-IT7
Work surface roughness	/	Ra1.6
X fast moving speed	mm/min	4000
Z fast moving speed	mm/min	6000
Tailstock sleeve diameter	mm	100
Tail sleeve inner hole taper	/	MT6
Tailstock sleeve movement	mm	250
Tool holdor form	/	Electric 4-station (optional horizontal 6-station)
Ball screw diameter*pitch	mm	X:30*06 Z:50*10
Tool size	mm	40x40
