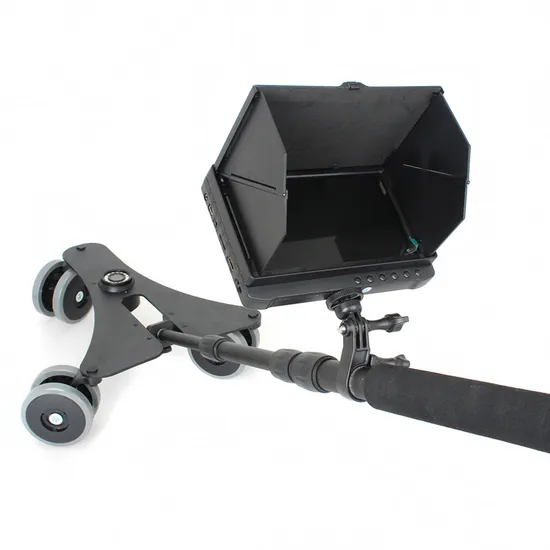

Under Vehicle Security System for Border, Airport, Customs and Prison (UVIS/UVSS)

Product Description

Under Vehicle Security System for Border, Airport, Customs and Prison (UVIS/UVSS)
5.0MP HD Digital Under VehicleSecurity System H2D-300 is good vehicle checking device for public security, explosion, prison, security, customs and other departments.
Let's make the vehicle checking easier.
5.0MP Digital Under vehicle surveillance system mainly adopt to inspect the roof part, carriage ,beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding everywhere. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
5.0MP FULL HD 1080P Under Vehicle Scanning System , it did surpass the traditional under vehicle checking mirror.It is recordable and able to take photo and save image and video.
you won't miss any video under the vehicle. 64GB storage enough for scanning the vehicle everywhere.You won't worry about the image distort any more.
120 deg wide view angle .It comes with 19.5mm flexible gooseneck mini cameras heads, you can check everywhere as you want.
HDMI video output support much bigger TV screen offer you much better vision.
It won't be smudged and fragile , you can take it everywhere.
Special Features:
Double HD digital cameras for checking.
1st camera:5.0Mega 16 LED camera with universal wheel
2nd camera:5.0 Mega 6 LED camera Φ18mm with 0.25m flexible pole
Universal wheel with wear-resisting tires
Reinforced design passed 10000 times crash testing
7 inch monitor with sunshade
Support 64GB storage
Support HDMI video output
Support H.264 Video Compression Format
5000mah li-battery, 8 hours working time
2m Telescopic Survey Pole for all-purpose usage
Top grade aluminum allay case
Specification:

Digital camera for wheels tray	Optical Element	1/2.5 CMOS Sensor SONY
	Optical Total Pixels	5.0 Mega :3200(H)×1800(V)
	CMOS Sensor Size	5.6mm(H)×3.14mm(V)
	LED lamps	16 pcs LED lamps high light
	Sensitivity	0.08Lux/F1.2
	Lens & View angle	3.6mm F1.2 (H )120 °
	HD Video Output Interface	FPD-Link3
	Wheels on the tray	Omni-directional wheel
	Dimension & Weight	37 x 46mm, 35g(only camera)
	Cable(5 Cores High-Speed Line)	Diameter:4.0mm Length:3meters
Mini camera for soft metal pipe	Optical Element	1/3 CMOS Sensor
	Optical Total Pixels	5.0Mega:3200(H)×1800(V)
	CMOS Sensor Size	5.07mm(H)×3.38mm(V)
	LED lamps	6 pcs LED lamps hight light
	Sensitivity	0.2Lux/F1.2
	Lens & View angle	0.5mm F1.2 120 °
	HD Video Output Interface	FPD-Link3
	Dimension & Weight	19.5 x 28mm, 10g
	Cable(5Cores High-Speed Line)	Diameter:4mm Length:3meters
	Flexible pipe lenth	25cm soft metal pipe
Telescopic Pole	Constriction Length:58cm	Unfolded Length:228cm
DVR 7" SCREEN	HD Video Output	HDMI:1920* 1080;1280*720
	Video Storage Pixels(16:9)	HDMI:1920* 1080;1280*720
	Video Compression Format	H.264
	Video Storage	AVI
	HD Digital Video Input Interface	FPD-Link 3
	Photo Format	JPG 5.0 MP :3200(H)×1800(V)
	Storage External SD card	TF card 1GB-64GB(Optional)
	Operating System	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
	Voltage	DC :7-24V USB DC:5V
	Current(Monitor mode)	600 mA
	Current(Video mode)	700 mA
	AC Adapter	DC 12V 1A
	Built-in Battery	Li-battery 7500mAh
	Record time	8 hours
	Dimension:	177mm x120mm x 20mm
	Sunshade	One-press open sunshade
	Weight	350 g

What is in the parcel?
1* gooseneck inspection camera
1* wheel tray under vehicle security camera
1*7 inch monitor with sunshade
1*2m adjustable telescopic pole
1*HDMI cable
1*USB cable
1*AC adapter
1* Aluminum alloy case
1*8GB TF card
1*User manual

For more details, please watch video on youtube:
https://3rdeye-minicam.en.made-in-china.com (Product show)
https://3rdeye-minicam.en.made-in-china.com (real usage outside)
OEM/ODM available:

1) Laser print logo on the uvis device

2) Customized camera housing

3) Customized Color Box

4) Any your idea on camera we can help you to design and put it into production


After-Sale Service:

1) All products will be strictly Quality Checked in house before packing

2) All products will be well packed before shipping

3) All our products have 2 year warranty.


FAQ:
Q: Where do you ship from?
A: We shipped from Shenzhen, China.

Q: When will you ship out the item and can I have the tracking NO.?
A: Item will be shipped within 1-3 working days upon payment received(Holidays excluded), and of course, tracking will be updated to you ASAP.

Q: What kind payment mode do you accept ?
A: You can do payment via paypal , T/T,Western Union, Moneygram.

Q: Do you accept small orders like 1 pcs, 2pcs, 5pcs?
A: Yes,we can start with sample order ,the unit price will be different based on different quantities.
