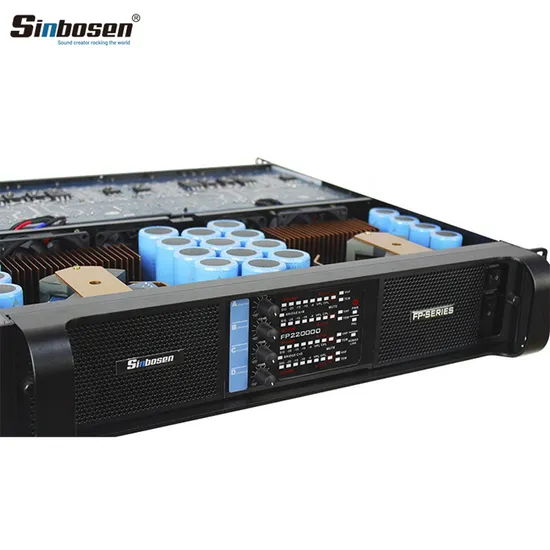

Professional High Power Amplifier Fp22000q 4 Channel Tube AMP Outdoor Amplifier
| US$500.00-850.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FP22000Q
Used For
Professional
Tube Type
Transistor Amplifier
Function
Post Amplifier, Pre-amplifier
Sound Channel
4.1
Output Number
4
Voltage
220V&110V
Element Number
Push-Pull Amplifier
Conductive Mode
Td
Product Name
Fp22000q Power Amplifier
Color
Black, Blue,White
Amplifier Type
Class Td
Frequency Response
20 Hz - 34 kHz
8Ωstereo Power(RMS)
2500wx4CH
4Ωstereo Power(RMS)
4650wx4CH
Feature
New Heat Sink/Add More 8 Fans
Capacitor
3600UF 200V
Subwoofer
Good for Dual 18 or 21 Subwoofer.
Warranty
Three Years
Certification
Ce, RoHS
OEM Service
Accepted
Transport Package
Strong Carton
Specification
580*180*560mm
Trademark
Sinbosen
Origin
Guangzhou, China
HS Code
8518400090
Production Capacity
1000 PCS/Month
Product Description
Professional high power amplifier fp22000q 4 channel tube amp outdoor amplifier| FP Series | FP7000 | FP9000 | FP14000 | FP6000Q | FP10000Q | FP22000Q |
| 8ΩStereo Power(RMS) | 1500WX2 | 1800WX2 | 2400WX2 | 700WX4 | 1350WX4 | 2500WX4 |
| 4ΩStereo Power(RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1300WX4 | 2100WX4 | 4650WX4 |
| 2ΩStereo Power(RMS) | 3500WX2 | 4500WX2 | 7000WX2 | 1500WX4 | 2500WX4 | 7250WX4 |
| 8ΩBridged Power(RMS) | 5600W | 6000W | 8800W | 2500WX2 | 4200WX2 | 8800WX2 |
| 4ΩBridged Power(RMS) | 7000W | 9000W | 14000W | 3000WX2 | 5000WX2 | 14500WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz | |||||
| THD 20 Hz - 20 kHz for 1 W | <0.1% | |||||
| Signal-to-Noise Ratio | >112 dBA | |||||
| Channel separation (Crosstalk) at 1 kHz | >70 dB | |||||
| Input Connectors (per channel) | 3-pin XLR, electronically balanced | |||||
| Output Connectors (per channel) | Binding Posts 2-pole | |||||
| Class | TD | |||||
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input | |||||
| Operating voltage, 230 V / 115 V nominal | 130-265 V / 65-135 V selectable | |||||
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | |||||
| Input impedance | 20 kOhm | |||||
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB | |||||
New heat sink We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.
Capacitor Upgrade
The old one is 3300UF 200V and now the new is 3600UF 200V. Totally add more 300UF capacity. The amplifier power supply board is better than before, it will make your subwoofer bass sound quality more loud and powerful.
| Feature |
| 4 Channel Class TD Switching power amplifier. 4 x 4,650 Watts into 4 Ohms,4 x 2,500 Watts into 8 Ohms Neutrik XLR*/speakon connectors. Use Original high-quality capacitor 3600uf 200V. Use Original ONSEMI type PNP power output transistor. Creat SUPER sound quality,good for dual 18 or 21 subwoofer. High quality fans from TaiWan. Extended heatsink board to 94 mm. Separately controllable on Gain. Scalable Voltage Peak Limiter (VPL). Bridge-mode operation for Touring Applications. Comprehensive protection scheme. |
1.What's your MOQ (Minimum order quantity)?
A:There is no MOQ limited, you can choose to order 1pc or 1000000pcs, the more the better!
2.Except product value and shipping cost, do I need to pay any other fees in China?
A:No other fees needed in China!
3.How can I make the payment, what's your payment terms?
A:You can pay by TT, Western Union, or Paypal.
4.How long will it takes for production after payment? ( By express, door to door delivery, such as DHL/TNT/FedEx/UPS...)
A:If your order qty less than 5000pcs, it will takes about 10 working days; If more than 5000pcs, please confirm with me directly!
5.How long is your guarantee period of products?
A:3 year, if any problems during this period, we will sent you free replacements to repair, anyway we will find the best solution for you!
6.Can you use our company logo and package?
A:Yes, we are manufacturer, we accept OEM request!
