ESD Test Gun for IEC/ En 61000-4-2 ESD Testing

Product Description

Overview

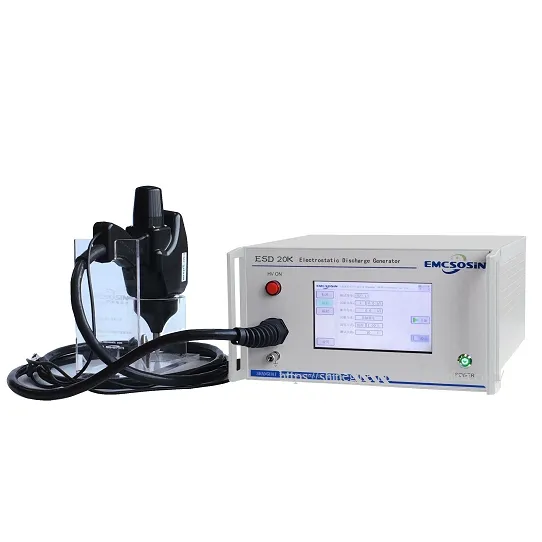

ESD simulator (electrostatic discharge generator or esd gun) is used to evaluate the electrostatic immunity performance of electrical components and electronic equipment by simulating real electrostatic discharge as defined in the standard IEC/ EN 61000-4-2. Our generator is designed in full compliance with standard IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322.
Standard and basis of product designing & manufacturing
IEC/ EN 61000-4-2: Testing and measurement techniques - Electrostatic discharge immunity test
Features User friendly 7" Touch Panel Display Support multi-language & facilitate users Built-in environment self-test program Programmable operation Pre-programmed IEC/ EN 61000-4-2 test settings Very convenient to replace the discharge modules to meet different standards of the test requirements RS232 / USB Port, PC control operation
Technical data

Model	ESD 20K	ESD 30K
Standard	IEC61000-4-2,GB/T 17626.2
Operation	7" touch panel display	7" touch panel display
Output voltage	0.2~±20kV	0.2~±30kV
Polarity	Positive/ negative/ alternating	Positive/ negative/ alternating
Energy Storage Capacitance	150pF	150pF
Discharge Resistor	330Ω	330Ω
Discharge Current Rise Time	0.6~1ns	0.6~1ns
The First Peak Current (±15%)	7.5A at 2kV/ 15.0A at 4kV/ 22.5A at 6kV/ 30.0A at 8kV
Current at 30ns (±30%)	4.0A at 2kV/ 8.0A at 4kV/ 12.0A at 6kV/ 16.0A at 8kV
Current at 60ns (±30%)	2.0A at 2kV/ 4.0A at 4kV/ 6.0A at 6kV/ 8.0A at 8kV
Holding Time (air discharge)	≥5s	≥5s
Discharge Modes	Contact discharge, air discharge	Contact discharge, air discharge
Operating Modes	Single discharge, repetitive discharges	Single discharge, repetitive discharges
Discharge Trigger	Manual, automatic or remote	Manual, automatic or remote
Working Mode	IEC level mode/ user mode/ program mode/ voltage rising patterns	IEC level mode/ user mode/ program mode/ voltage rising patterns
Discharge Interval	0.05~9.99s	0.05~9.99s
Numbers of Discharge	1~9999	1~9999
Power Supply	AC220V (110V optional) ± 10%,50/60Hz	AC220V (110V optional) ± 10%,50/60Hz
