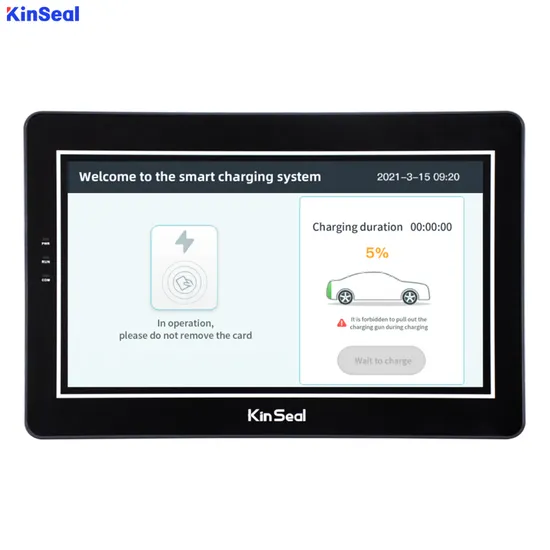

Kinseal 10.1" Industrial HMI Touch Screen

Product Description

This product is 10.1 inch industry hmi.Sensitive and quick response. The 10 inch large screen can have a better visual and control experience, with accurate touch and fewer false touches. According to the function and purpose of the product, customization can be achieved: access to frequency converter, mechanical manufacturing equipment, ladder control, medical surgery and other systems, and easily control the operating state of the equipment. Relying on the intelligent algorithm, it can realize the functions of inverter start and stop control, intelligent automatic welding, intelligent elevator dispatching, intelligent disinfection in operating room, air conditioning equipment operation plan, etc.

Module	Specifications
AMZ101W01RAG	AMZ series, 10.1 inch, 10 to 30 V, a single serial port: RS232 / RS485 / RS422, 128 Mbyte SPI Nand, Resistive touch screen
AMZ101W01RAGD	AMZ series,10, 1 inch,10-30V, serial port 1: RS232/RS485/RS422, serial port 2: RS485, 128Mbyte SPI Nand Flash, Resistive touch screen
AMZ101W01RAGE	AMZ series,10.1 inch,10-30V, serial port 1: RS232/RS485/RS422, serial port 2: RS232, 128Mbyte SPI Nand Flash, Resistive touch screen

Products Features

Power Voltage	DC10--30V
Backlight Adjustment	Support
Touch	4-wire resistive touch screen
LCD resolution	1024X600
USB1	TYPE C, Download port
USB2	TYPE A,U disk interface
LCD	TN TFT LCD,250cd/m2
COM1 communication	RS422,RS232/RS485 communication(3 choose 1)
COM2 communication	RS232/RS485 communication(2 choose 1)
Storage	128Mbyte SPI NAND FLASH
Power Protection	To prevent the reverse,Distinguish the positive and negative poles of power supply
RTC	Support
Save power failure data	Support
Download	SD card,USB download,U disk

Products Size
Products Parameters

Product Specification
Hardware Performance	Module	AMZ101W01RAG/AMZ101W01RAGD/AMZ101W01RAGE
	Display Size	10.1" TFT LCD
	Resolution	1024X600
	Colors	260000
	Brightness	250 cd/m2
	Backlight	LED
	LED life	20000 hours
	Touch screen	4-wire resistive touch screen touch screen(Surface hardness 4H),
	CPU	32-bit 600MHz ARM9 built-in 32MB DDR2 memory
	Memory	128Mbyte SPI Nand Flash
	RTC	Real-time clock built-in
	Ethernet	Unsupported
	Save power failure data	Support
	USB1	TYPE C USB,Download interface
	USB2	TYPE A USB,U-disk
	Program download Mode	USB,U disk,SD card
	U disk	Support
	Communication port	COM1: RS232,RS485,RS422 .3 choose 1 COM2:RS232,RS485d.Only one type is supported
Electrical Specifications	Maximum power consumption	3.5 W
	The rated voltage	DC 10-30V
	Power protection	+/-2KV lightning surge protection capability
	The allowed loss of power	<5ms
	CE&ROHS	Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards;Lightning surge +/ -2kV, EFT: +/ -4kV;Electrostatic contact discharge +/-8KV;Electrostatic air discharge +/-15KV.
Environmental Specifications	Operating temperature	-20ºC~60ºC
	Storage temperature	-30ºC~70ºC
	Environmental humidity	10-90% RH(non-condensing)
	Vibration	10-25Hz (X, Y, Z direction, 2g/30 min)
	Cooling way	Natural air cooling
The Other Parameters	Protection grade	The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20
	Display Active Area	225mmX128mm
	Panel Cutout	255mmX168mm
	Overall dimensions	267mmX180mm
	The weight	745g

Definition of terminal pin
Kinseal the all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.
Structure
Highly integrated, compact structure, cost saving and space saving.
Programming Software
HMI: Adopts Kinseal HMI touch screen programming software.
PLC: Compatible with Mitsubishi Works 2/ GX Developer 8.86.
