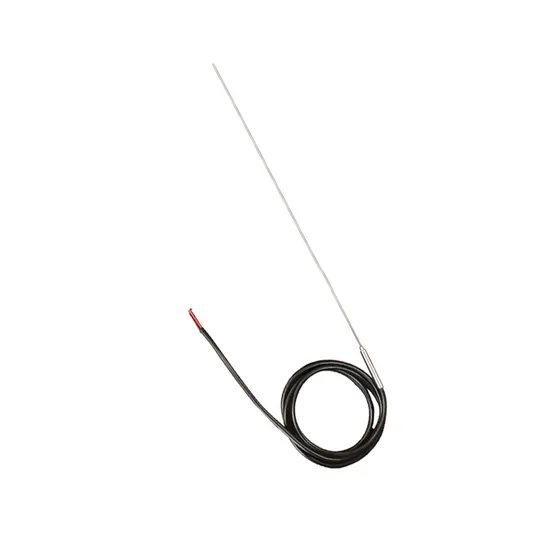

Techunion Oven Thermocouple Rtd PT100 Temperature Sensor CE ISO

Product Description

Company Profile ANHUI JUNTAI INDUSTRIAL Co., Ltd locating in Tianchang city, We are specialize in the development, manufacture, marketing and after-sales service of all kind of temperature sensor ,included thermocouple and noble metal sensor Type K N E J T S R B,thermal resistance temperature sensor RTD pt100/pt200/pt500/pt1000 and customize micro sensor , super micro sensor and etc, thermometer. They are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. FRP products, included FRP grating, FRP pultrusion grating, FRP pultrusion profiles Cover plate grille ,Cover plate grille,and other related products.The product is widely used in the fields of automotive interior, fiberglass, architecture, and some functional new materials. JUNTAI has an excellent design team and a highly efficient management team. We have strict internal management systems and highly talented technicians who have rich working experience in industrial instruments. In addition, we have set up several departments, including R&D, Production, Sale and Service. We always insist on the spirit of "responsibility and trust". Thus, our corporation has won trust and compliments from customers. Lots of experience in the temperature sensor industry on the global market. More and more products are designed and assembled in accordance with international standards and North American standards.Our construction allows us make instant response to customers' requests, and complete any orders efficiently.
Our factory also has passed CE ISO9001: 2000, RoHS certifications. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Products Description
pt100/pt1000 is a temperature sensor based on the resistance value of platinum (Pt) and the temperature being a certain function. JUNTAI uses international imported chips (Heraeus, IST, etc.), uses high-quality thermally conductive silica gel, and fills and encapsulates the chips into probes of various materials. The temperature sensor made is in strict compliance with the IEC60751 standard. It has the characteristics of high temperature measurement accuracy, short response time, and good stability.
Feature
Precise measurement in extreme environments.
Fast response time.
Ease of application and use.
Engineered to withstand extreme temperatures -200 to + 600°C.
High-quality stainless steel probe: waterproof, moisture-proof and anti-rust.
International industrial standards.
Greater engineering efficiency due to linear output.
Wide application: can be used in household air conditioner, refrigerator, water fountain, drying box, constant box, etc.

Item	Specification
Sensor type	Platinum Resistance, Pt100 or Pt1000 Ohms
Ice point resistance	100Ω or 1000Ω Ohms
Fundamental interval (0°C to 100°C)	38.5Ω nominal (100Ω) 385Ω nominal (1000Ω)
Measuring range	-50~200°C, -50~350°C, -50~600°C
Tolerance class	DIN Class A or B
Response time	10S (0.63τ)
Insulation Resistance	100Mohm
Cable material	PVC, Silicone, Fiberglass
Housing	SUS304 or SUS316
European / British Standard	Conforms to IEC 60751:2008 / BS EN 60751:2008

Element	PT100, PT1000
Accuracy and temperature range	1/3DIN(±0.1ºC): -50~+250ºC; Grade A(±0.15ºC): -50~+450ºC; Grade B(±0.3ºC): --50~+600ºC;
Probe size	Diameter: ¢ 3~ ¢ 9mm, length: 3mm~1000mm
Cable material	PVC, TPE, PFA, Silicone, Braided, Shielded...
Wire end	Coated tin, with connector like JST, Molex, Audio jack, RS45, M8 and so on.
Support customization

Related products

Certificated

Factory equipment
Please identify the following items when ordering:
1. Fixing method
2. Single or duplex
3. Lead cable Length
4. Lead cable Material
5. Protection material
6. Protection length
7. Probe Length
8. Probe Diameter
9. Stainless steel armor tube material
10. Stainless steel armor tube length
