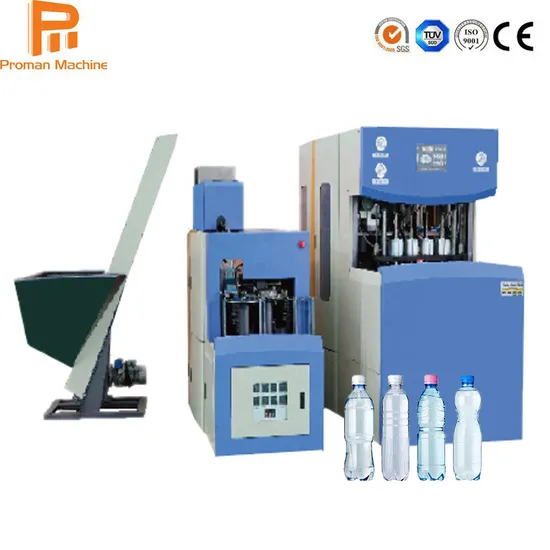

0.5L-2L Energy Saving Whole Set Semi Automatic 4 Cavity 2000bph Plastic Water Pet Bottle Blowing Molding Machine

Product Description

0.5L-2L Energy Saving Whole Set Semi Automatic 4 Cavity 2000bph Plastic Water Pet Bottle Blowing Molding Machine
Description:
PM series pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. which is made of plastic of crystalline type, such as PET and PP etc.
Flow chart:
PET preform→Autoloader→reheater →molding→ bottles

Blowing / Blow machine Features:
1. Stable performance with advanced PLC.
2. Automatic preform conveyer to save human cost.
3. Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4. High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5. High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6. Introduce the air cylinder to avoid contamination and noise.
7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8. Strong clamping force with high pressure and double crank links to lock the mould.
9. Customized bottle mold design.
10. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.Easy installation and starting.
11. Contamination is avoided for the bottle body.
12. Ideal effect of the chilling with the chilling system.
13. Low rejection rate: Less than 0.2 percent.
14. Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
Technical Parameter:

		UNIT	PM-12	PM-8Y	PM-1500	PM-1-20
	Theoretical output	Pcs/h	500	900	1800	90
Product	Volume	L	5.0	2.0	2.0	20
	Max. height	mm	360	360	360	550
	Max. diameter	mm	120	105	105	300
Mould	Number of cavities	/	1	2	4	1
	Mould piate dimension(L*H)	mm	490*470	490*405	490*405	620*620
	Mould thickness	mm	250	220	220	380
	Mould opening stroke	mm	220	180	180	380
Electrical	Power	/	220_380V/50_60HZ	220_380V/50_60HZ	220_380V/50_60HZ	220_380V/50_60HZ
	Total power	KW	11	11	21	36
	Heating power	KW	10	10	20	37
Machine	Main body dimension(L*W*H)	m	1.5*0.65*2.0	1.5*0.65*2.0	1.5*0.65*2.0	2.1*0.75*1.6
	Main body weight	kg	600	550	550	900
	Pre-heater(L*W*H)	m	1.5*0.65*1.5	1.4*0.65*1.5	1.8*0.65*1.5	2.7*0.7*1.6

Brand Name

Name	Brand	Original
Cylinder	SMC	Japan
Magnetic valve	SMC	Japan
Photoelectric switch	XINLV	CHINA
Touch screen	MCGS	CHINA
PLC	Mitsubishi	Japan
Transducer	SMC	Japan
servo motor	HUICHUANG	CHINA

Our Service
Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
We Warmly Welcome Customers All Over The World To Our Company.If You Have Interests In Our Products. Please Contact Us If You Have Any Problems.
