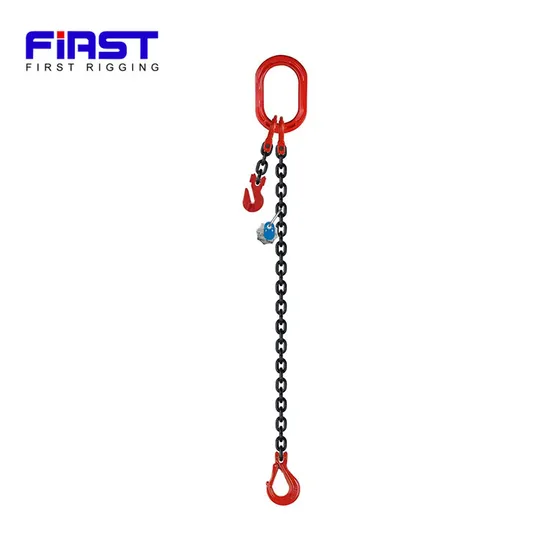

Rigging G80 Eye Self-Locking Hook for Lifting Chain Slings

Product Description

Product Description
Our company also has been verified onsite by world-leading inspection company Bureau Veritas.
Our company also has been verified by Made in China ISO9001 Approved, GS & TUV Certificate.
Product Parameters

G80 CHAIN	SINGLE LEG	2 LEGS		3-4 LEGS		CHOKER ENDLESS SLINGS
φ		0°<β≤45°<>	45°<β≤60°<>	0°<β≤45°<>	45°<β≤60°<>
mm	WLL kg	WLL kg		WLL kg		WLL kg
6	1120	1600	1120	2360	1700	1800
7	1500	2120	1500	3150	2240	2500
8	2000	2800	2000	4250	3000	3150
10	3150	4250	3150	6700	4750	5000
13	5300	7500	5300	11200	8000	8500
16	8000	11200	8000	17000	11800	12500
18	10000	14000	10000	21200	15000	16000
20	12500	17000	12500	26500	19000	20000
22	15000	21200	15000	31500	22400	23600
26	21200	30000	21200	45000	31500	33500
32	31500	15000	31500	67000	47500	50000

<β≤45°<><β≤60°<><β≤45°<><β≤60°<>

G100 CHAIN	SINGLE LEG	2 LEGS		3-4 LEGS		CHOKER ENDLESS SLINGS
φ		0°<β≤45°<>	45°<β≤60°<>	0°<β≤45°<>	45°<β≤60°<>
mm	WLL kg	WLL kg		WLL kg		WLL kg
6	1400	2000	1400	3000	2120	2240
7	1900	2650	1900	4000	2800	3000
8	2500	3550	2500	5300	3750	4000
10	4000	2600	4000	8000	6000	6300
13	6700	9500	6700	14000	1000	10600
16	10000	14000	10000	21200	15000	16000
19	14000	20000	14000	30200	21200	22400
22	19000	26500	19000	40200	28000	30000

<β≤45°<><β≤60°<><β≤45°<><β≤60°<>
G70,G80,G100 adjustable lifting chain sling,Length and diameter according to customers' requirement.
STRONG AND STURDY
Forged from manganese steel
the product is not easy to break
Compact structure.
PRECISION AND ROBUST
The product has low ductility
after finishing treatment, and
will not stretch after being
stressed.
COMPACT STRUCTURE
The product is light in weight,
compact in structure, convenient
to use, durable and durable.
Application
Chain lifting slings provide excellent performance in harsh environments. When using a chain for overhead lifting, an alloy grade, either grade 80 or 100, is recommended.
Both are manufactured from special analysis alloy steel and engineered for a
Superior cmbination of strength and durability.
Type to be chosen
About us
Started as an anchor chain factory 20 years ago, Weifang First Rigging Company is an professional manufacturer of steel chains and chain accessories..
Our product includes carbon steel chains, alloy steel chains, chain accessories such as hooks, rings and links, shackles and other related rigging.
Our team aimed at providing one-stop solutions for small and medium-sized distributors and retailers.
With our support of quality product innovative design,competitive price and on time delivery, we have laid a solid foundation for the success of our business partners around the world.
Product line
FAQ
Q: Are You A Factory Or A Trading Company ?
A: As A Factory, We Have The Qualification To Export.
Q: What Is The Warranty For The Products ?
A: We Provide 2 Years Quality Guarantee For Most Products. If Any Quality Problems On Our Side Were
Found In This Period, We Will Send You The Replacement Or Repair Part In Your Next New Order.
Q: What Is Your MOQ?
A: It depend on products. And Further Requests Can Be Negotiated.
Q: What About The Delivery Time ?
A: For hardware products, It Takes About 20-25 workdays.
For complete set, It Takes About 35 workdays.
Q: Do You Charge For Samples And Freight ?
A: Normal hardware products, sample for free(quantities within under 3pcs)
Freight Will Be On Customer's Account.
