15kw 2450MHz Mpcvd Cw Magnetron
Basic Info.
Model NO.
CK-2091
Cooling Method
Water Cooled Tube
Function
Microwave Transistor
Working Frequency
High Frequency
Structure
Alloy
Encapsulation Structure
Ceramic Packaged Transistor
Power Level
High Power
Material
Metal and Porcelain
Warranty
2 Years
Lead Time
3 Weeks
Port of Discharge
Shanghai
Customize
Available
Transport Package
Carton
Specification
medium
Trademark
ZEYE
Origin
China
HS Code
85407100
Production Capacity
2000/Year
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 40.00cm
Package Gross Weight
3.000kg
Product Description

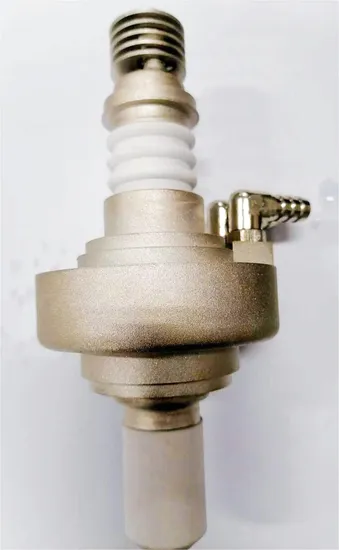

CK-2091 Continuous Wave magnetron 15kW/2450MHzCK-2091 magnetron is used for microwave heating system, CVD/MPCVD diamond growth system and etc.
Matched Permanent magnet/electromagnet,power supply are available.
Main specifications:
Operating frequency: 2450±30 MHz
CW power output: 15KW min.
Filament voltage(Standby): 8.5±0.7V
Filament current (Standby): 47A
Filament current (working): 29A
Anode voltage: ≤ 12.6 kV
Anode current: ≤ 1.8A
Load VSWR: ≤ 1.5:1
Efficiency: ≥ 66%
Anode cooling: by water
Cathode cooling: by air
Dimensions: 172.5x99x290mm
Warranty: 3,000 hrs
The manufacturer,Zeye electric technology Co., originated from an famous electronic tube factory which began developing electron tube in 1951. It produces glass electron tube: FU-33, FU-501,3-500Z, 5868,7092 and etc. Ceramic electron tube: CK-611, CK-2091,CK619 and etc.
The magnetron will be supplied by the manufacturer directly. We offer competitive prices and satisfactory after-sales service.
